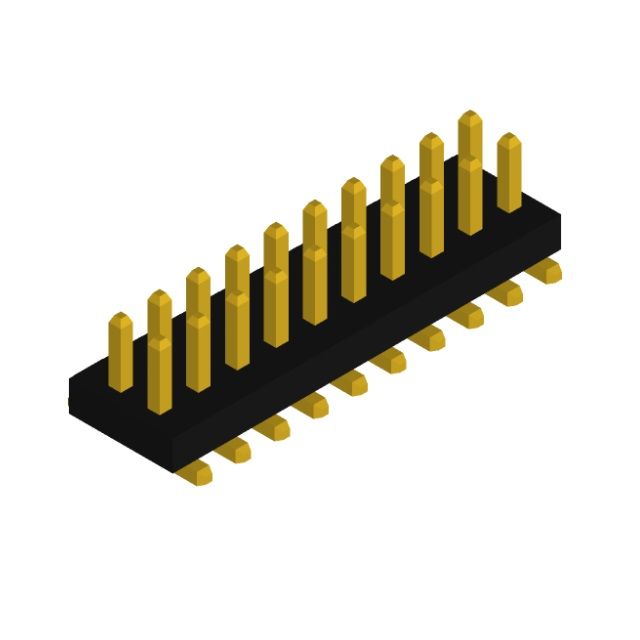

PHCD-SS020G1CBOLE-B346
MALE HEADER VERTICAL 20POS SMD G
Manufacturer: SUPERIOR TECHIC code: 4324-PHCD-SS020G1CBOLE-B346TR-ND - Tape & Reel (TR) || 4324-PHCD-SS020G1CBOLE-B346CT-ND - Cut Tape (CT) || 4324-PHCD-SS020G1CBOLE-B346DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 20 position 0.050" (1.27mm)
Specifications
- Mfr
- SUPERIOR TECH
- Style
- Board to Board
- Series
- PHCD
- Features
- Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.050" (1.27mm) Insulation Height0.039" (1.00mm) Insulation MaterialLiquid Crystal Polymer (LCP), Halogen Free Row Spacing - Mating0.050" (1.27mm) Contact Finish - PostGold Contact Length - Post0.079" (2.00mm) Operating Temperature-40°C ~ 125°C Overall Contact Length0.064" (1.62mm) Contact Finish - MatingGold Contact Length - Mating0.079" (2.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥11.83000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.03100 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.52310 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥7.60740 |
| Tape & Reel (TR) | 1,000 | ¥6.15759 |
| Tape & Reel (TR) | 2,000 | ¥5.86376 |
| Tape & Reel (TR) | 3,000 | ¥5.76531 |
