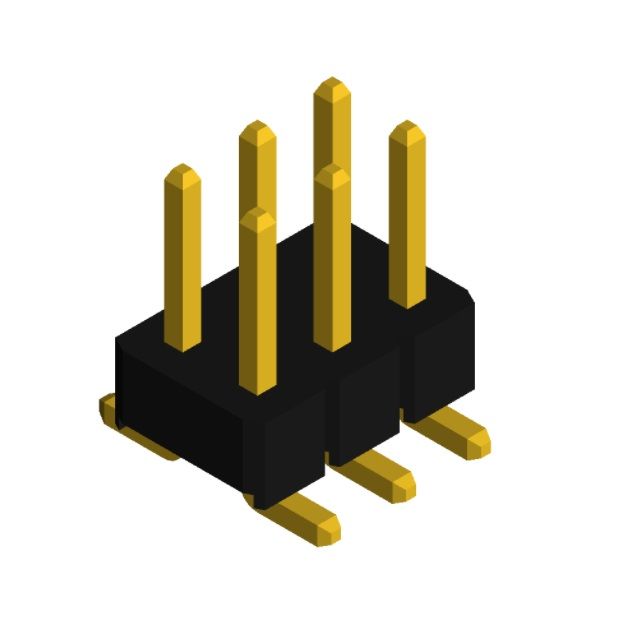

PHDD-SS006G1ABOGE-B005
MALE HEADER VERTICAL SMD 6POS G/
Manufacturer: SUPERIOR TECHIC code: 4324-PHDD-SS006G1ABOGE-B005TR-ND - Tape & Reel (TR) || 4324-PHDD-SS006G1ABOGE-B005CT-ND - Cut Tape (CT) || 4324-PHDD-SS006G1ABOGE-B005DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 6 position 0.079" (2.00mm)
Specifications
- Mfr
- SUPERIOR TECH
- Style
- Board to Board
- Series
- PHDD
- Features
- Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Unshrouded
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.079" (2.00mm) Insulation Height0.079" (2.00mm) Insulation MaterialPlastic, Halogen Free Row Spacing - Mating0.079" (2.00mm) Contact Finish - PostGold Contact Length - Post0.157" (4.00mm) Operating Temperature-40°C ~ 125°C Overall Contact Length0.083" (2.10mm) Contact Finish - MatingGold Contact Length - Mating0.157" (4.00mm) Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - PostFlash Contact Finish Thickness - MatingFlash Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.48000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.07600 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.76480 |
| Tape & Reel (TR) | 650 | ¥1.54598 |
| Tape & Reel (TR) | 1,300 | ¥1.47206 |
| Tape & Reel (TR) | 1,950 | ¥1.43050 |
| Tape & Reel (TR) | 3,250 | ¥1.37984 |
| Tape & Reel (TR) | 4,550 | ¥1.34746 |
| Tape & Reel (TR) | 6,500 | ¥1.31397 |
| Tape & Reel (TR) | 16,250 | ¥1.23171 |
| Tape & Reel (TR) | 32,500 | ¥1.17296 |
| Tape & Reel (TR) | 65,000 | ¥1.11702 |
