Description

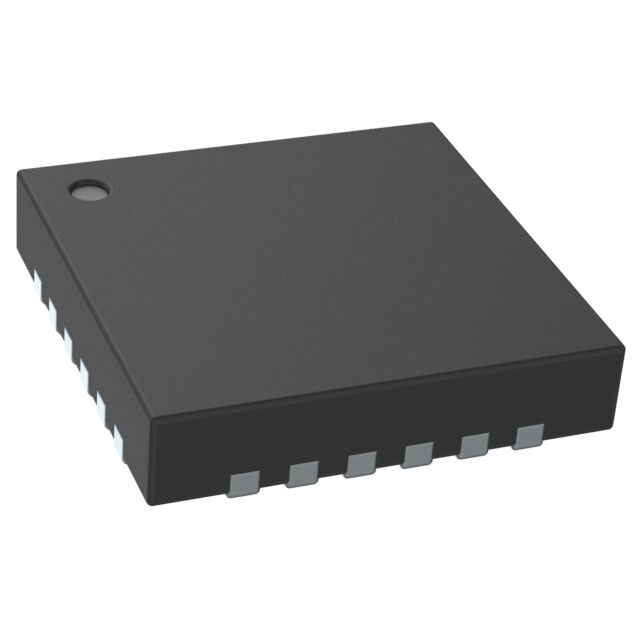

6 Circuit IC Switch 2:1 5.2Ohm 24-VQFN (4x4)
Specifications
- Grade
- Automotive
- Series
- -
- Crosstalk
- -62dB @ 10MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Diodes Incorporated
- Mounting Type
- Surface Mount, Wettable Flank
- Qualification
- AEC-Q100
- -3db Bandwidth
- 380MHz
- Package / Case
- 24-VFQFN Exposed Pad
- Switch Circuit
- SPDT
- Charge Injection
- -
- Number of Circuits
Operating Temperature-40°C ~ 105°C (TA) Supplier Device Package24-VQFN (4x4) On-State Resistance (Max)5.2Ohm Voltage - Supply, Dual (V±)- Switch Time (Ton, Toff) (Max)30ns, 30ns Voltage - Supply, Single (V+)1.65V ~ 3.6V Current - Leakage (IS(off)) (Max)2µA Multiplexer/Demultiplexer Circuit2:1 Channel-to-Channel Matching (ΔRon)300mOhm Channel Capacitance (CS(off), CD(off))10pF, 16pF Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥14.29000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥10.47200 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥9.52080 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.46940 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥7.96884 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥7.66666 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥7.41820 |
| Tape & Reel (TR) | 3,500 | ¥7.07514 |
| Tape & Reel (TR) | 7,000 | ¥6.93126 |
| Tape & Reel (TR) | 10,500 | ¥6.85923 |
