Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

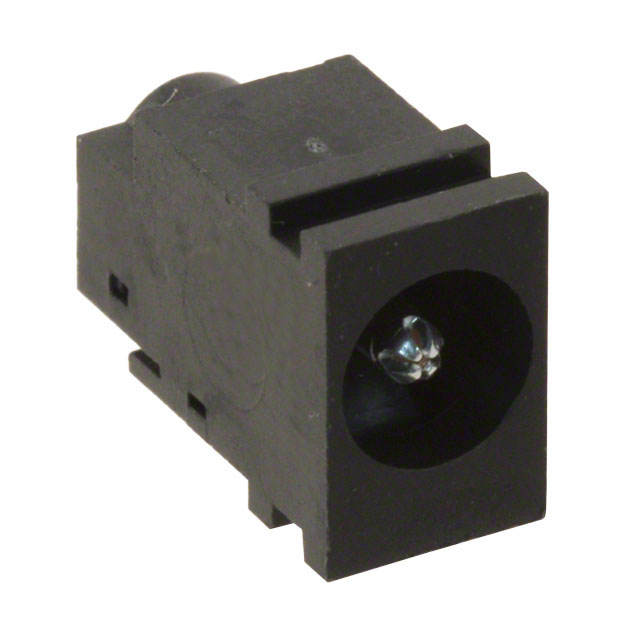

Power Barrel Connector Jack 1.75mm ID (0.068"), 4.75mm OD (0.187") Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Bag
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.065" (1.65mm ID), 0.203" (5.15mm OD) Contact MaterialBrass, Copper Alloy Housing MaterialPolyamide (PA66), Nylon 6/6 Internal Switch(s)Single Switch, Normally Closed Base Product NumberPJ-041 Mating Length/Depth0.323" (8.20mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.75mm ID (0.068"), 4.75mm OD (0.187") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥6.20000 |
| Bag | 10 | ¥5.26000 |
| Bag | 25 | ¥4.92560 |
| Bag | 50 | ¥4.68900 |
| Bag | 100 | ¥4.46580 |
| Bag | 250 | ¥4.18560 |
| Bag | 500 | ¥3.98548 |
| Bag | 1,000 | ¥3.79518 |
| Bag | 2,500 | ¥3.55752 |
