Description

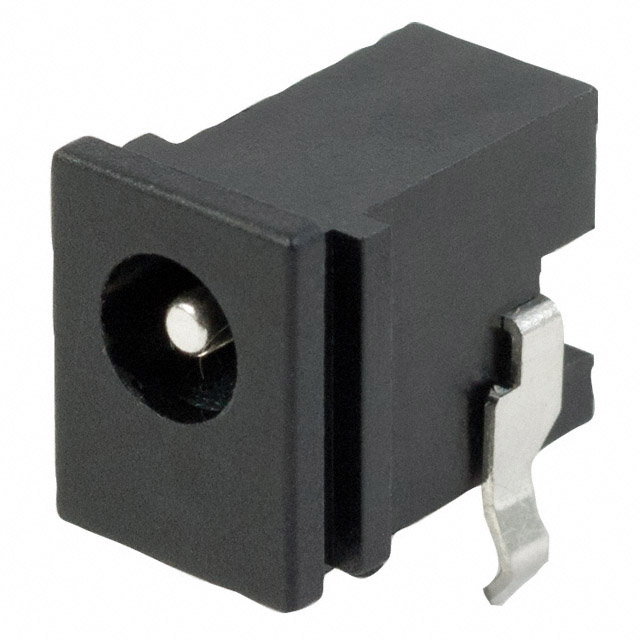

Power Barrel Connector Jack 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 Through Hole, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Bag
- Shielding
- Shielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Kinked Pin
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Through Hole, Right Angle
Actual Diameter0.067" (1.70mm ID), 0.157" (4.00mm OD) Contact MaterialBrass, Copper Alloy Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Single Switch, Normally Closed Mating Length/Depth0.335" (8.50mm) Current Rating (Amps)2.5 A Operating Temperature-25°C ~ 85°C Contact Material - PlatingSilver Material Flammability RatingUL94 V-0 Number of Positions/Contacts2 Conductors, 3 Contacts Industry Recognized Mating Diameter1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bag | 1 | ¥6.12000 |
| Bag | 10 | ¥5.18500 |
| Bag | 25 | ¥4.85960 |
| Bag | 50 | ¥4.62780 |
| Bag | 100 | ¥4.40630 |
| Bag | 250 | ¥4.12972 |
| Bag | 500 | ¥3.93254 |
| Bag | 1,000 | ¥3.74465 |
| Bag | 2,500 | ¥3.51015 |
