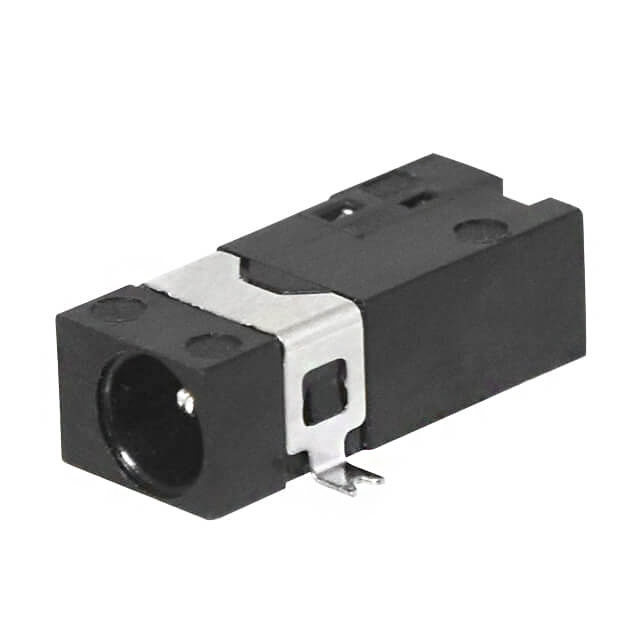

PJ-094H-SMT-TR
PWR JACK 0.65X2.75MM HORIZONTAL
Manufacturer: Same Sky (Formerly CUI Devices)IC code: 2223-PJ-094H-SMT-TR-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Power Barrel Connector Jack 0.65mm ID (0.026"), 2.35mm OD (0.093") Surface Mount, Right Angle
Specifications
- Gender
- Male
- Series
- -
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR)
- Shielding
- Shielded
- Body Color
- Silver, Black
- Part Status
- Obsolete
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Jack
- Actual Diameter
- 0.026" (0.65mm ID), 0.108" (2.75mm OD)
- Voltage - Rated
- 24VDC
- Contact Material
- Brass, Copper Alloy
- Housing Material
- Polyamide (PA10T), Nylon 10T
