Description

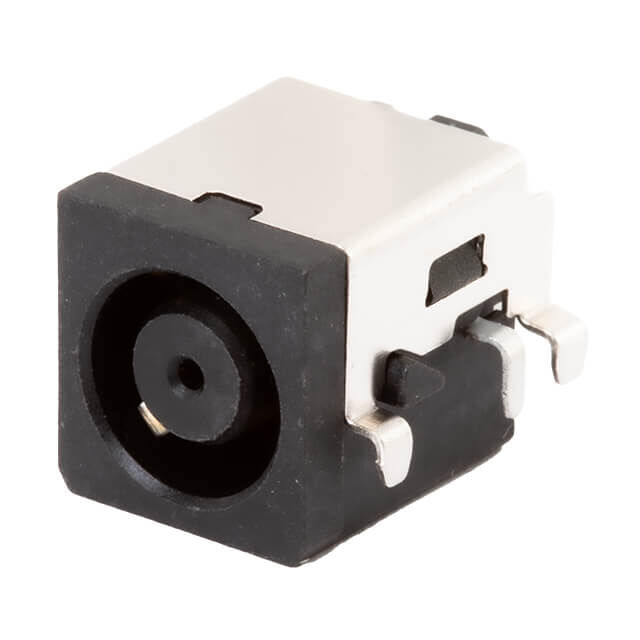

Power Barrel Connector Jack 1.00mm ID (0.039"), 5.00mm OD (0.196") Surface Mount, Right Angle
Specifications
- Gender
- Female
- Series
- -
- Features
- Solder Retention
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Body Color
- -
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Manufacturer
- Same Sky (Formerly CUI Devices)
- Body Material
- -
- Mounting Type
- Surface Mount, Right Angle
Actual Diameter0.039" (1.00mm ID), 0.197" (5.00mm OD) Contact MaterialCopper Alloy Housing MaterialPolyamide (PA10T), Nylon 10T Internal Switch(s)Does Not Contain Switch Mating Length/Depth0.354" (9.00mm) Operating Temperature-20°C ~ 70°C Contact Material - PlatingGold Material Flammability RatingUL94 V-0 Number of Positions/Contacts3 Conductors, 3 Contacts Industry Recognized Mating Diameter1.00mm ID (0.039"), 5.00mm OD (0.196") Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥7.61000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥6.48300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥6.07640 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥5.78520 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥5.50820 |
| Tape & Reel (TR) | 300 | ¥4.07760 |
| Tape & Reel (TR) | 600 | ¥3.88272 |
| Tape & Reel (TR) | 900 | ¥3.77320 |
| Tape & Reel (TR) | 1,500 | ¥3.63960 |
| Tape & Reel (TR) | 2,100 | ¥3.57648 |
