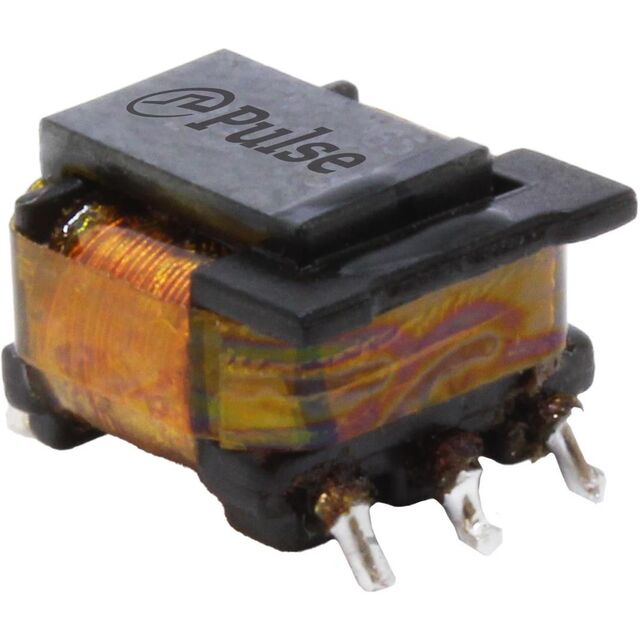

PMT9085.015NLT
XFMR GATE DRIVE 1CT:5CT SM NPB
Manufacturer: Pulse ElectronicsIC code: 553-PMT9085.015NLTTR-ND - Tape & Reel (TR) || 553-PMT9085.015NLTCT-ND - Cut Tape (CT) || 553-PMT9085.015NLTDKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
160µH Gate Drive Pulse Transformer 1CT:5CT Surface Mount
Specifications
- Series
- PMT9085.xxxNLT
- Weight
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Inductance
- 160µH
- Part Status
- Active
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- 24VµS
- Size / Dimension
- -
- Transformer Type
- Gate Drive
- Height - Seated (Max)
- 0.260" (6.60mm)
- Operating Temperature
- -40°C ~ 125°C
- Turns Ratio - Primary:Secondary
