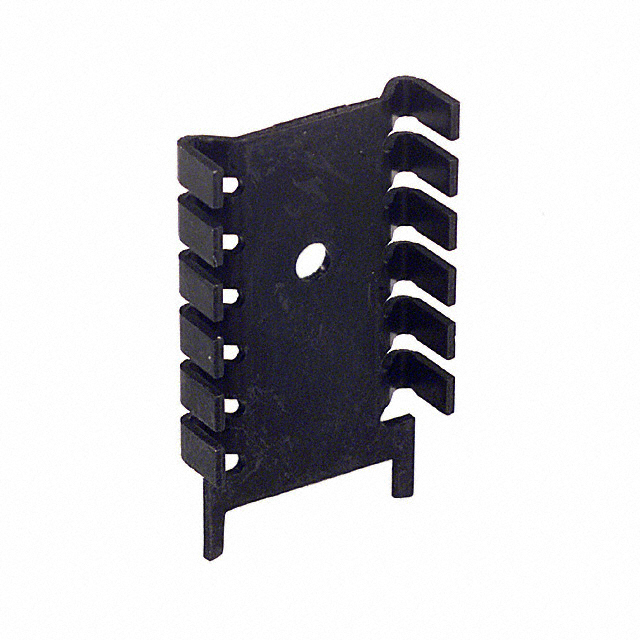

PSB2-1CB
HEATSINK VERT W/TABS BLK TO-220
Manufacturer: CTS Thermal Management ProductsIC code: 294-1045-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Heat Sink TO-126, TO-127, TO-220 Aluminum Board Level, Vertical
Specifications
- Mfr
- CTS Thermal Management Products
- Type
- Board Level, Vertical
- Shape
- Rectangular, Fins
- Width
- 0.880" (22.35mm)
- Length
- 1.250" (31.75mm)
- Series
- PSB2-1
- Diameter
- -
- Material
- Aluminum
- Fin Height
- 0.250" (6.35mm)
- Part Status
- Obsolete
- Package Cooled
- TO-126, TO-127, TO-220
- Material Finish
- Black Anodized
- Attachment Method
- Bolt On and PC Pin
- Thermal Resistance @ Natural
- 25.90°C/W
- Power Dissipation @ Temperature Rise
- -
- Thermal Resistance @ Forced Air Flow
- -
