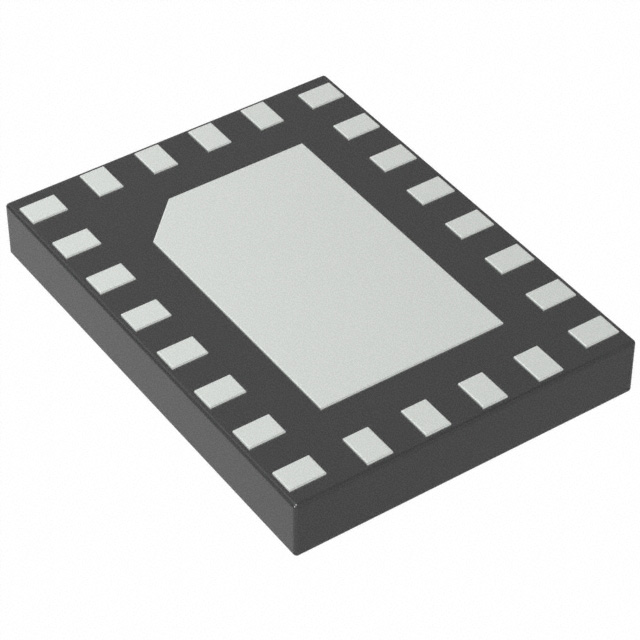

PTN36502HQX
Type-C USB 3.1 Gen 1 and Display
Manufacturer: NXP SemiconductorsIC code: 2156-PTN36502HQX-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Buffer, ReDriver Channel 5.4Gbps 24-HX2QFN (2.4x3.2)
Specifications
- Type
- Buffer, ReDriver
- Input
- Differential
- Output
- Differential
- Series
- -
- Packaging
- Bulk
- Delay Time
- 174ps
- Part Status
- Active
- Applications
- USB Type C
- Manufacturer
- NXP Semiconductors
- Package / Case
- 24-XFQFN Exposed Pad
- Data Rate (Max)
- 5.4Gbps
- Current - Supply
- 225mA
- Voltage - Supply
- 1.7V ~ 1.9V
- Number of Channels
- -
- Capacitance - Input
- 10 pF
- Signal Conditioning
- Input Equalization, Output De-Emphasis
- Operating Temperature
- -40°C ~ 85°C (TA)
- Supplier Device Package
- 24-HX2QFN (2.4x3.2)
