Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

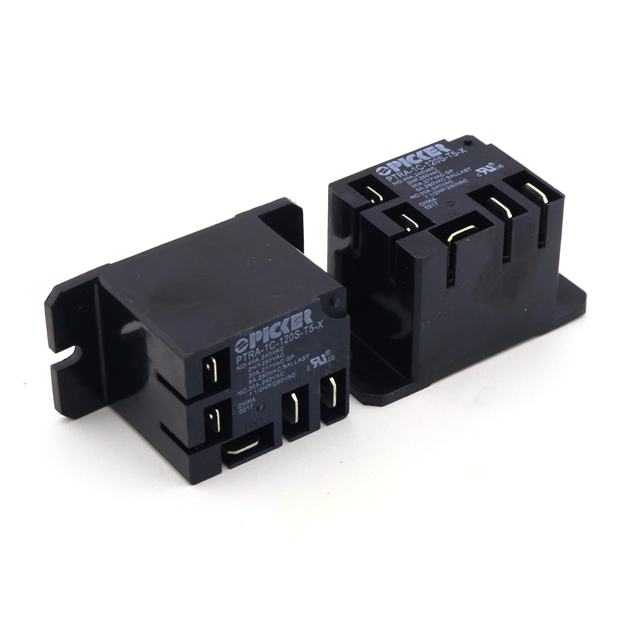

General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
Specifications
- Mfr
- Picker Components
- Grade
- -
- Series
- PTRA
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tube
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 16.6 mA
- Coil Voltage
- 120VAC
- Contact Form
- SPDT (1 Form C)
- Operate Time
- 15 ms
- Release Time
Mounting TypeChassis Mount Approval AgencyCUL, cURus, UL Coil Resistance3.04 kOhms Contact MaterialSilver Cadmium Oxide (AgCdO) Switching Voltage300VAC, 110VDC - Max Termination StyleQuick Connect - 0.187"/0.250" Base Product NumberPTRA-1C Load - Max Switching12000VA, 4400W Must Operate Voltage90 VAC Must Release Voltage36 VAC Operating Temperature-55°C ~ 100°C Contact Rating (Current)40 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥37.91000 |
| Tube | 15 | ¥33.14067 |
| Tube | 30 | ¥32.00567 |
| Tube | 60 | ¥30.90800 |
| Tube | 105 | ¥30.05000 |
| Tube | 255 | ¥28.73620 |
| Tube | 510 | ¥27.74965 |
| Tube | 1,005 | ¥26.81616 |
