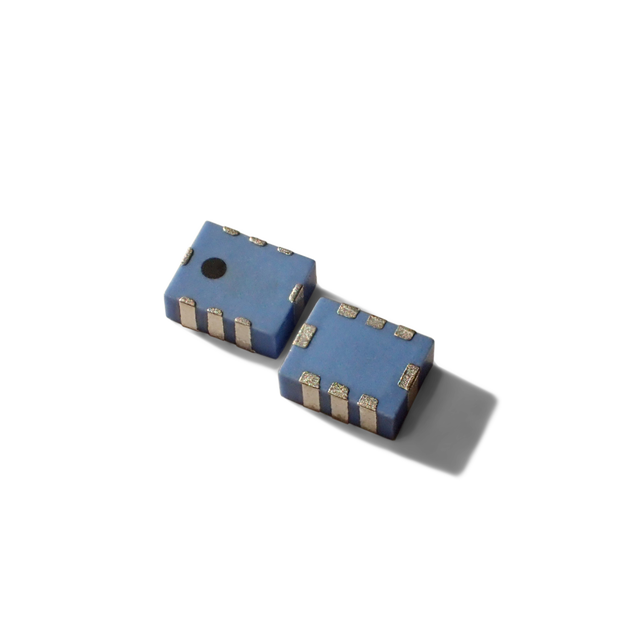

RFDIP2510G15AT
DIPLEXER 5-1002MHZ/1125-1675MHZ
Manufacturer: Walsin Technology CorporationIC code: 1292-RFDIP2510G15ATTR-ND - Tape & Reel (TR) || 1292-RFDIP2510G15ATCT-ND - Cut Tape (CT)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Diplexer 5MHz ~ 1.002GHz / 1.125GHz ~ 1.675GHz 1008 (2520 Metric), 8 PC Pad
Specifications
- Type
- Diplexer
- Series
- RFDIP
- Packaging
- Tape & Reel (TR) || Cut Tape (CT)
- Part Status
- Active
- Manufacturer
- Walsin Technology Corporation
- Mounting Type
- Surface Mount
- Package / Case
- 1008 (2520 Metric), 8 PC Pad
- Frequency Bands (Low / High)
- 5MHz ~ 1.002GHz / 1.125GHz ~ 1.675GHz
- Return Loss (Low Band / High Band)
- -
- Low Band Attenuation (min / max dB)
- 3.70dB / -
- High Band Attenuation (min / max dB)
- 2.00dB / -
