Description

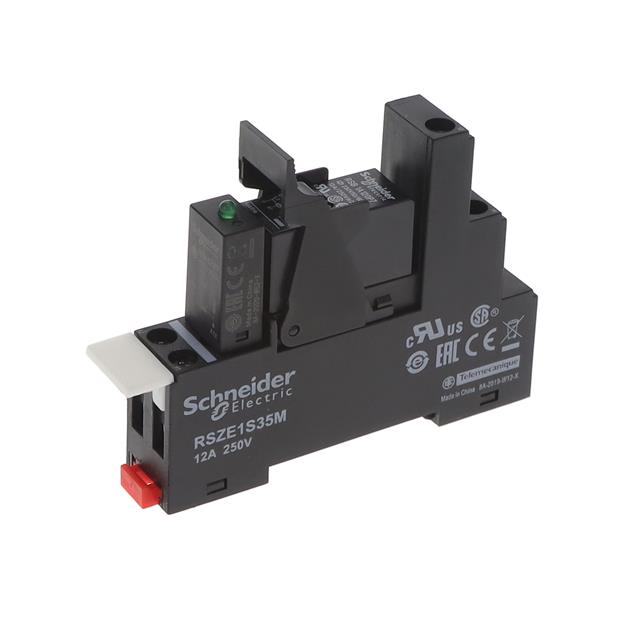

General Purpose Relay SPDT (1 Form C) 230VAC Coil Chassis Mount
Specifications
- Mfr
- Schneider Electric
- Grade
- -
- Series
- Harmony
- Features
- Lighted Indicator
- Coil Type
- Non Latching
- Packaging
- Box
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 7.1 mA
- Coil Voltage
- 230VAC
- Contact Form
- SPDT (1 Form C)
- Operate Time
- 20 ms
- Release Time
Mounting TypeChassis Mount Approval AgencyCSA, EAC, UL Coil Resistance32.5 kOhms Contact MaterialSilver Nickel (AgNi) Switching Voltage250VAC, 28VDC - Max Termination StyleSpring Terminal Load - Max Switching3000VA, 336W Must Operate Voltage180 VAC Must Release Voltage34.5 VAC Operating Temperature-40°C ~ 70°C Contact Rating (Current)12 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥354.80000 |
| Box | 10 | ¥315.98300 |
| Box | 25 | ¥301.71960 |
| Box | 50 | ¥291.34800 |
| Box | 100 | ¥281.33040 |
| Box | 250 | ¥268.60444 |
