Description

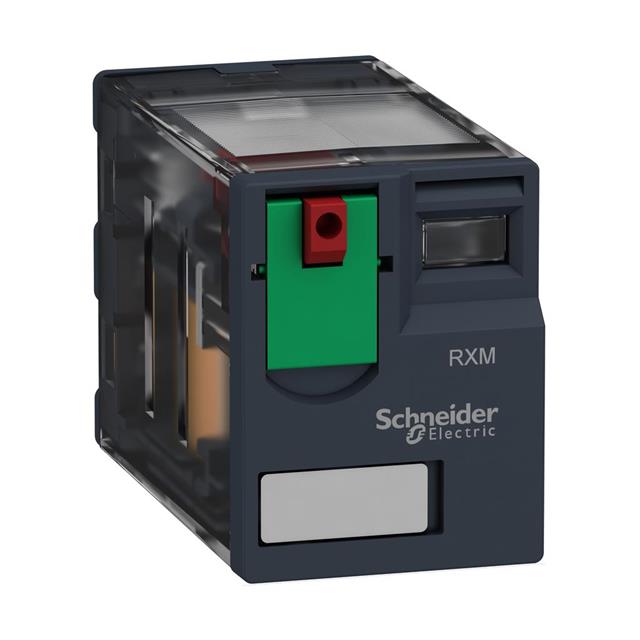

General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable
Specifications
- Mfr
- Schneider Electric
- Grade
- -
- Series
- Harmony
- Features
- Lighted Indicator
- Coil Type
- Non Latching
- Packaging
- Box
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 27.1 mA
- Coil Voltage
- 120VAC
- Contact Form
- 3PDT (3 Form C)
- Operate Time
- 20 ms
- Release Time
Approval AgencyCE, CSA, IECEE, GOST, Lloyd's, UL Coil Resistance4.43 kOhms Contact MaterialSilver Nickel (AgNi) Switching Voltage250VAC, 28VDC - Max Load - Max Switching1675VA, 187.6W Must Operate Voltage96 VAC Must Release Voltage18 VAC Operating Temperature-40°C ~ 55°C Contact Rating (Current)6.7 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥85.17000 |
| Box | 10 | ¥75.85600 |
| Box | 25 | ¥72.43640 |
| Box | 50 | ¥69.95120 |
| Box | 100 | ¥67.55060 |
| Box | 250 | ¥64.49944 |
| Box | 500 | ¥62.28226 |
| Box | 1,000 | ¥60.13955 |
