SCX147-201

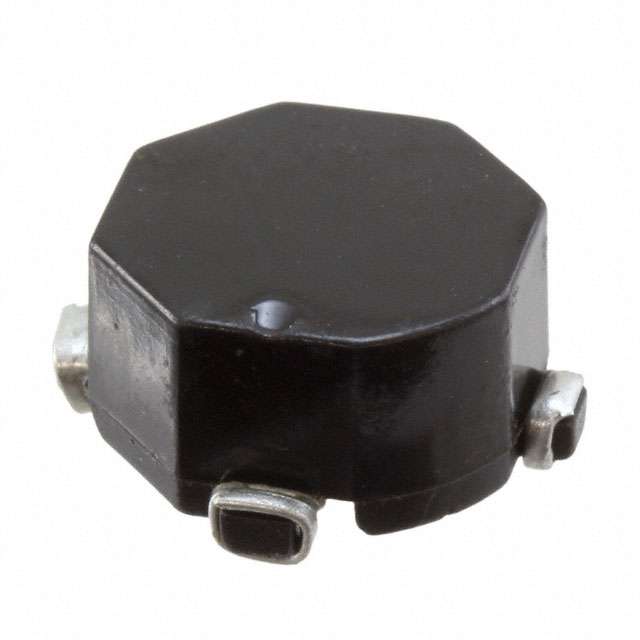

INDUCT ARRAY 2 COIL 200UH SMD
Manufacturer: Signal TransformerIC code: SCX147-201-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Unshielded 2 Coil Inductor Array 802.82 µH Inductance - Connected in Series 200 µH Inductance - Connected in Parallel 545mOhm Max DC Resistance (DCR) - Parallel 640 mA Nonstandard
Specifications
- Height
- 0.276" (7.00mm)
- Series
- SCX147
- Ratings
- -
- Packaging
- Tape & Reel (TR)
- Shielding
- Unshielded
- Tolerance
- ±20%
- Part Status
- Obsolete
- Manufacturer
- Signal Transformer
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Number of Coils
- 2
- Size / Dimension
- 0.567" L x 0.567" W (14.40mm x 14.40mm)
- Operating Temperature
- -
- Current Rating - Series
- 320 mA
- Current Rating - Parallel
- 640 mA
- DC Resistance (DCR) - Series
- 2.18Ohm Max
- DC Resistance (DCR) - Parallel
- 545mOhm Max
- Inductance - Connected In Series
