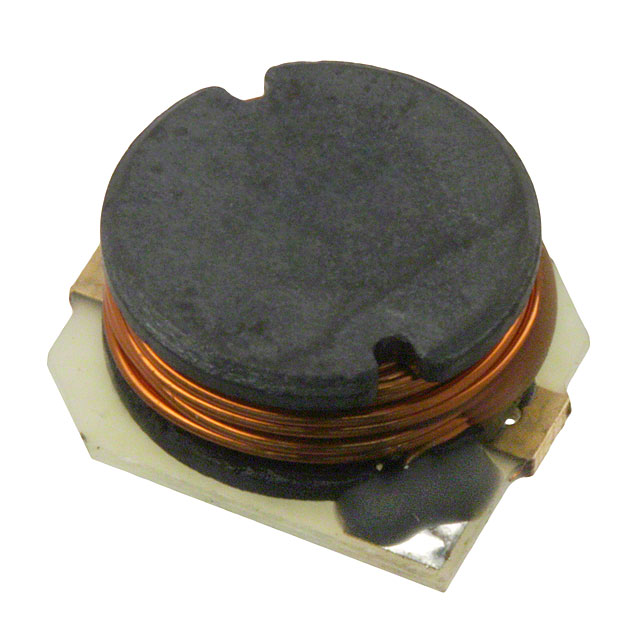

SDR1105-330KL
FIXED IND 33UH 2.6A 100 MOHM SMD
Manufacturer: Bourns Inc.IC code: SDR1105-330KLTR-ND - Tape & Reel (TR) || SDR1105-330KLCT-ND - Cut Tape (CT) || SDR1105-330KLDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
33 µH Unshielded Drum Core, Wirewound Inductor 2.6 A 100mOhm Max Nonstandard
Specifications
- Mfr
- Bourns Inc.
- Type
- Drum Core, Wirewound
- Series
- SDR1105
- Ratings
- AEC-Q200
- Q @ Freq
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Tolerance
- ±10%
- Inductance
- 33 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Material - Core
- Ferrite
Base Product NumberSDR1105 DC Resistance (DCR)100mOhm Max Current Rating (Amps)2.6 A Height - Seated (Max)0.197" (5.00mm) Operating Temperature-40°C ~ 125°C Frequency - Self Resonant- Current - Saturation (Isat)5A Inductance Frequency - Test1 kHz Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥6.95000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.69800 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥5.26600 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥4.96660 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥4.68210 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥4.33148 |
| Tape & Reel (TR) | 800 | ¥3.92451 |
| Tape & Reel (TR) | 1,600 | ¥3.70073 |
| Tape & Reel (TR) | 2,400 | ¥3.57593 |
| Tape & Reel (TR) | 4,000 | ¥3.42480 |
| Tape & Reel (TR) | 5,600 | ¥3.32886 |
| Tape & Reel (TR) | 8,000 | ¥3.23017 |
| Tape & Reel (TR) | 20,000 | ¥3.18369 |
