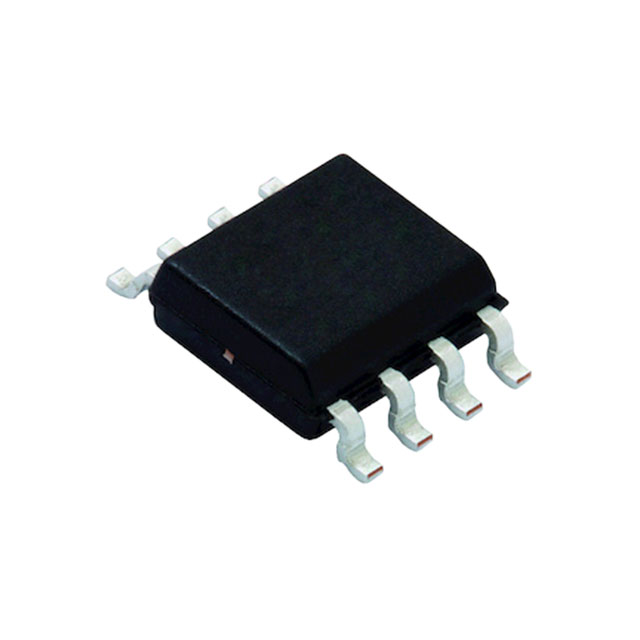

SI4153DY-T1-GE3
P-CHANNEL 30-V (D-S) MOSFET SO-8
Manufacturer: Vishay SiliconixIC code: 742-SI4153DY-T1-GE3TR-ND - Tape & Reel (TR) || 742-SI4153DY-T1-GE3CT-ND - Cut Tape (CT) || 742-SI4153DY-T1-GE3DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
P-Channel 30 V 14.3A (Ta), 19.3A (Tc) 3.1W (Ta), 5.6W (Tc) Surface Mount 8-SOIC
Specifications
- Mfr
- Vishay Siliconix
- Grade
- -
- Series
- TrenchFET® Gen III
- FET Type
- P-Channel
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Vgs (Max)
- ±25V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-SOIC (0.154", 3.90mm Width)
- Vgs(th) (Max) @ Id
- 2.5V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 9.5mOhm @ 10A, 10V
- Power Dissipation (Max)
- 3.1W (Ta), 5.6W (Tc)
- Supplier Device Package
- 8-SOIC
- Gate Charge (Qg) (Max) @ Vgs
- 93 nC @ 10 V
- Drain to Source Voltage (Vdss)
- 30 V
- Input Capacitance (Ciss) (Max) @ Vds
- 3600 pF @ 15 V
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Current - Continuous Drain (Id) @ 25°C
- 14.3A (Ta), 19.3A (Tc)
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥9.01000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥5.64800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.69920 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.86142 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.59148 |
| Tape & Reel (TR) | 2,500 | ¥2.29919 |
| Tape & Reel (TR) | 5,000 | ¥2.11846 |
| Tape & Reel (TR) | 7,500 | ¥2.02639 |
| Tape & Reel (TR) | 12,500 | ¥1.92294 |
| Tape & Reel (TR) | 17,500 | ¥1.87419 |
