Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

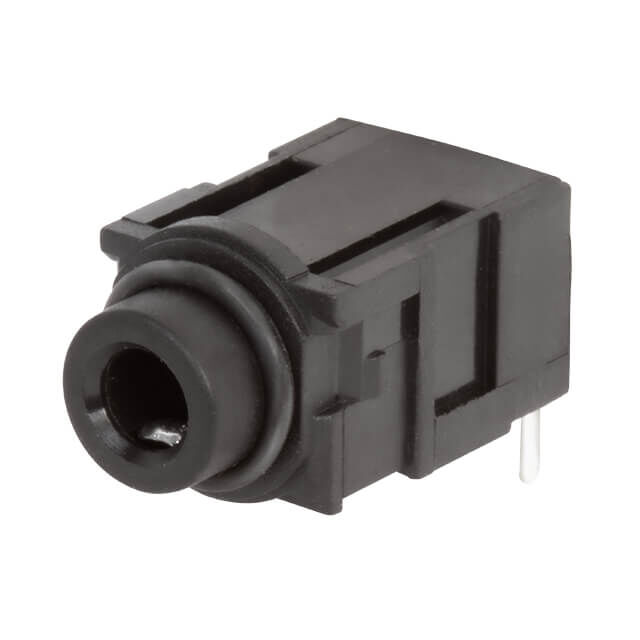

0.138" (3.50mm) Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Specifications
- Mfr
- Same Sky (Formerly CUI Devices)
- Grade
- -
- Gender
- Female
- Series
- SJ3
- Features
- -
- Includes
- -
- Packaging
- Tray
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
Mounting TypeThrough Hole, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialPhosphor Bronze Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Does Not Contain Switch Mating Length/Depth0.551" (14.00mm) Current Rating (Amps)500 mA Operating Temperature-20°C ~ 70°C Contact Material - PlatingNickel Number of Positions/Contacts4 Conductors, 4 Contacts Industry Recognized Mating Diameter0.138" (3.50mm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥7.86000 |
| Tray | 10 | ¥6.65700 |
| Tray | 25 | ¥6.23520 |
| Tray | 50 | ¥5.93740 |
| Tray | 100 | ¥5.65370 |
| Tray | 300 | ¥5.23143 |
| Tray | 500 | ¥5.04610 |
| Tray | 1,000 | ¥4.80505 |
| Tray | 2,500 | ¥4.50426 |
