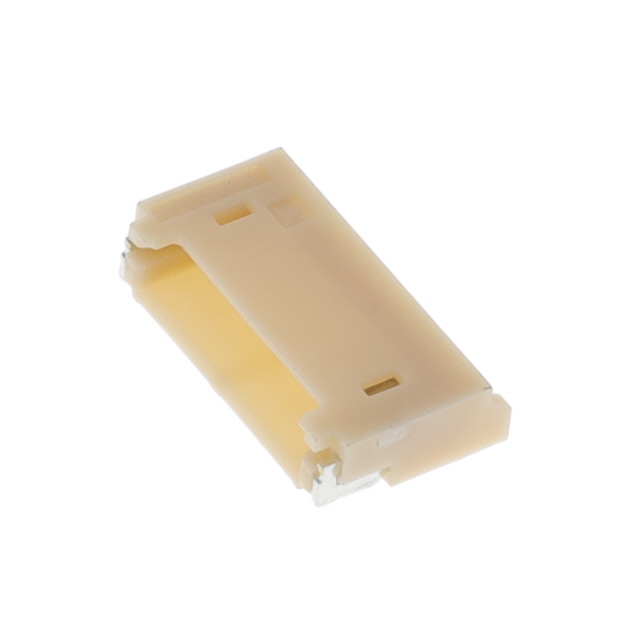

SM02(8.0)B-BHS-1N-TB
CONN HEADER SMD R/A 2POS 8MM
Manufacturer: JST Sales America Inc.IC code: 455-SM02(8.0)B-BHS-1N-TBTR-ND - Tape & Reel (TR) || 455-SM02(8.0)B-BHS-1N-TBCT-ND - Cut Tape (CT) || 455-SM02(8.0)B-BHS-1N-TBDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 2 position 0.315" (8.00mm)
Specifications
- Mfr
- JST Sales America Inc.
- Style
- Board to Cable/Wire
- Series
- BH
- Features
- Solder Retention
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
Fastening TypeDetent Lock Pitch - Mating0.315" (8.00mm) Contact MaterialCopper Alloy Insulation Height0.126" (3.20mm) Base Product NumberSM02(8.0 Insulation MaterialPolyamide (PA), Nylon Operating Temperature-25°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.63000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.93700 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥3.34440 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.98498 |
| Tape & Reel (TR) | 1,000 | ¥2.41599 |
| Tape & Reel (TR) | 2,000 | ¥2.30063 |
| Tape & Reel (TR) | 3,000 | ¥2.23571 |
| Tape & Reel (TR) | 5,000 | ¥2.15658 |
| Tape & Reel (TR) | 7,000 | ¥2.10600 |
| Tape & Reel (TR) | 10,000 | ¥2.07215 |
