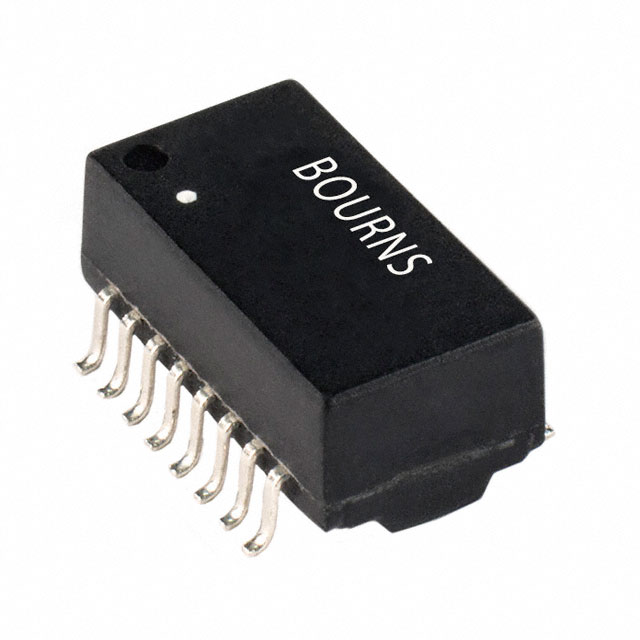

SM75056PEL
PULSE XFMR 1:1 TX 1:1 RX 1.2MH
Manufacturer: Bourns Inc.IC code: SM75056PEL-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
1.2mH Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
Specifications
- Series
- SM
- Weight
- -
- Packaging
- Tape & Reel (TR)
- Inductance
- 1.2mH
- Part Status
- Active
- Manufacturer
- Bourns Inc.
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Size / Dimension
- 0.504" L x 0.272" W (12.80mm x 6.90mm)
- Transformer Type
- -
- Base Product Number
- SM750
- Height - Seated (Max)
- 0.222" (5.65mm)
- Operating Temperature
