Description

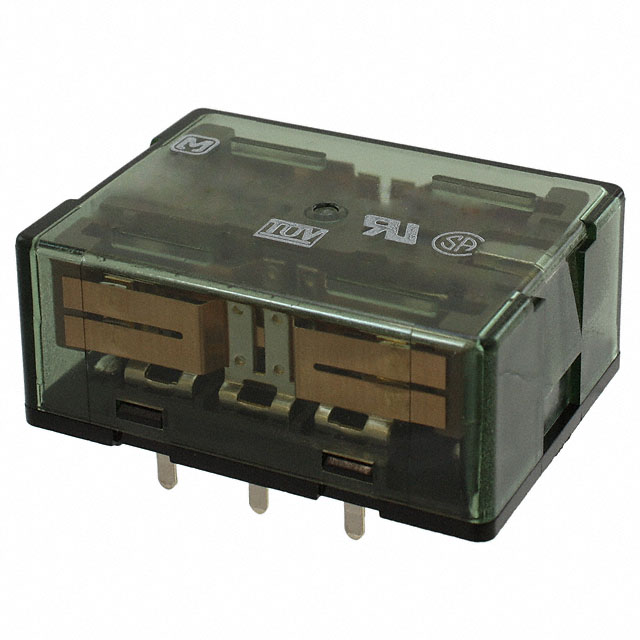

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole
Specifications
- Mfr
- Panasonic Electric Works
- Grade
- -
- Series
- SP
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Box
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- -
- Coil Current
- 12.5 mA
- Coil Voltage
- 24VDC
- Contact Form
- 4PDT (4 Form C)
- Operate Time
- 30 ms
- Release Time
Mounting TypeThrough Hole Approval AgencyCSA, UR, VDE Coil Resistance1.92 kOhms Contact MaterialSilver Tin Oxide (AgSnO) Switching Voltage250VAC, 30VDC - Max Base Product NumberSP4-P-D Load - Max Switching2500VA, 300W Must Operate Voltage16.8 VDC Must Release Voltage2.4 VDC Operating Temperature-50°C ~ 60°C Contact Rating (Current)10 A Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Box | 1 | ¥390.11000 |
| Box | 10 | ¥347.44700 |
| Box | 30 | ¥328.72633 |
| Box | 50 | ¥320.36060 |
| Box | 100 | ¥309.34570 |
| Box | 250 | ¥295.35300 |
