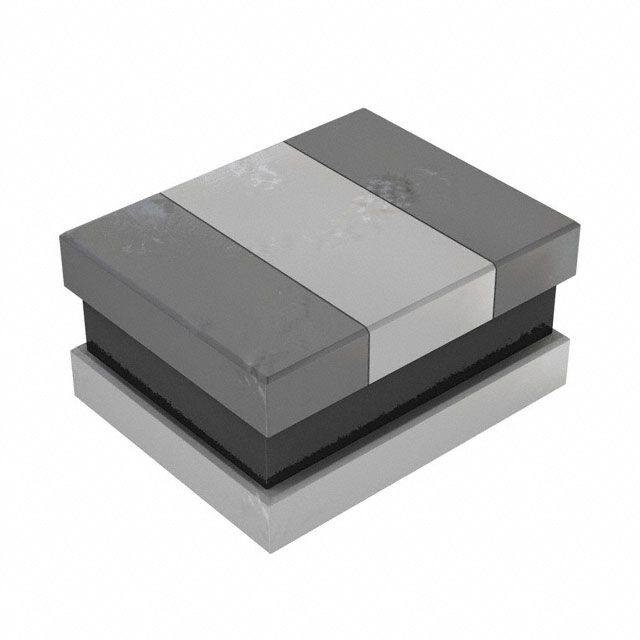

SRN2512-2R2M
FIXED IND 2.2UH 2.3A 102MOHM SMD
Manufacturer: Bourns Inc.IC code: SRN2512-2R2MTR-ND - Tape & Reel (TR) || SRN2512-2R2MCT-ND - Cut Tape (CT) || SRN2512-2R2MDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2.2 µH Shielded Drum Core, Wirewound Inductor 2.3 A 102mOhm Max 1008 (2520 Metric)
Specifications
- Mfr
- Bourns Inc.
- Type
- Drum Core, Wirewound
- Series
- SRN2512
- Ratings
- -
- Q @ Freq
- 11 @ 1MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Shielded
- Tolerance
- ±20%
- Inductance
- 2.2 µH
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 1008 (2520 Metric)
- Material - Core
- Ferrite
Size / Dimension0.098" L x 0.079" W (2.50mm x 2.00mm) Base Product NumberSRN2512 DC Resistance (DCR)102mOhm Max Current Rating (Amps)2.3 A Height - Seated (Max)0.047" (1.20mm) Operating Temperature-55°C ~ 125°C Supplier Device Package1008 (2520 Metric) Frequency - Self Resonant80MHz Current - Saturation (Isat)2.7A Inductance Frequency - Test1 MHz Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.15000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥1.80300 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.47940 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.21633 |
| Tape & Reel (TR) | 2,000 | ¥1.14683 |
| Tape & Reel (TR) | 4,000 | ¥1.08138 |
| Tape & Reel (TR) | 6,000 | ¥1.04487 |
| Tape & Reel (TR) | 10,000 | ¥1.00065 |
| Tape & Reel (TR) | 14,000 | ¥0.97258 |
| Tape & Reel (TR) | 20,000 | ¥0.94371 |
| Tape & Reel (TR) | 50,000 | ¥0.88482 |
