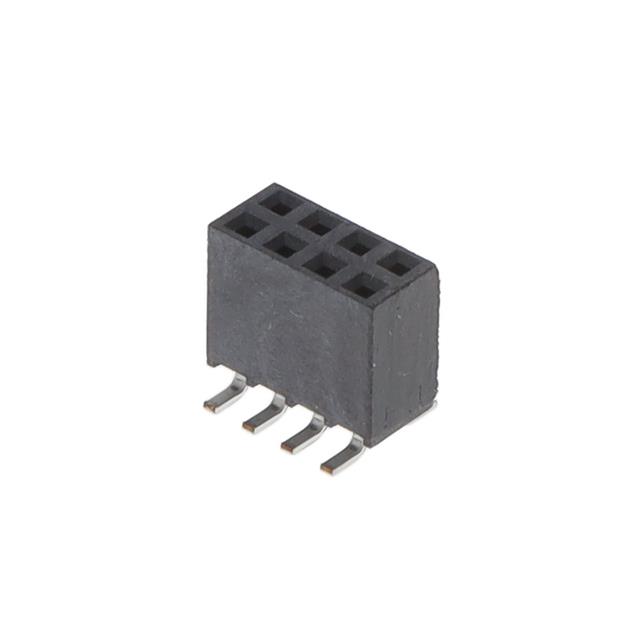

SSW-104-22-L-D-VS-K-TR
CONN RCPT 8POS 0.1 GOLD SMD
Manufacturer: Samtec Inc.IC code: 612-SSW-104-22-L-D-VS-K-TR-ND - Tape & Reel (TR) || 612-SSW-104-22-L-D-VS-K-TRCT-ND - Cut Tape (CT) || 612-SSW-104-22-L-D-VS-K-TRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Board or Cable
- Series
- SSW
- Features
- Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Forked
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
Pitch - Mating0.100" (2.54mm) Contact MaterialPhosphor Bronze Insulation Height0.335" (8.51mm) Base Product NumberSSW-104 Insulation MaterialLiquid Crystal Polymer (LCP) Row Spacing - Mating0.100" (2.54mm) Current Rating (Amps)4.7A per Contact Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating10.0µin (0.25µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥24.40000 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥22.57040 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥19.16740 |
| Tape & Reel (TR) | 225 | ¥19.16724 |
| Tape & Reel (TR) | 675 | ¥17.03262 |
| Tape & Reel (TR) | 1,125 | ¥14.36913 |
