Description

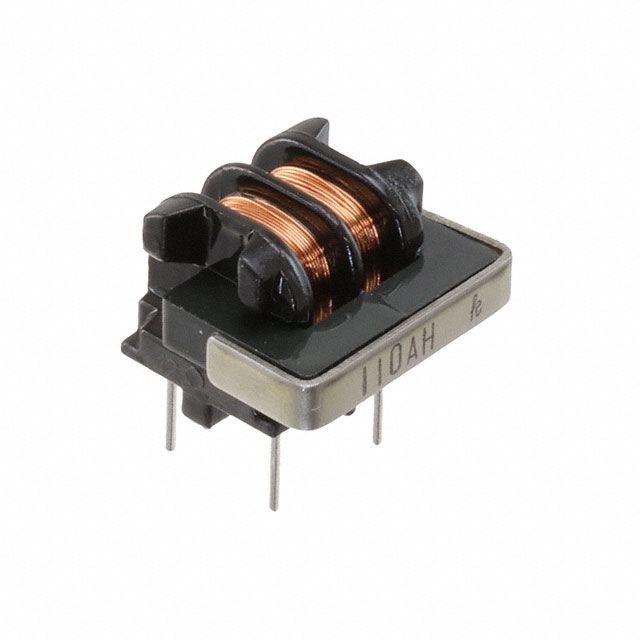

2 Line Common Mode Choke Through Hole 27 kOhms @ 500 kHz 300mA DCR 3Ohm
Specifications
- Series
- ST-110
- Ratings
- -
- Features
- -
- Packaging
- Tray
- Filter Type
- -
- Part Status
- Active
- Height (Max)
- 0.472" (12.00mm)
- Manufacturer
- KEMET
- Mounting Type
- Through Hole
- Package / Case
- Horizontal, 8 PC Pin
- Approval Agency
- -
- Number of Lines
- 2
- Size / Dimension
- 0.669" L x 0.610" W (17.00mm x 15.50mm)
- Voltage Rating - AC
- -
- Voltage Rating - DC
- 50V
- Current Rating (Max)
- 300mA
- Impedance @ Frequency
- 27 kOhms @ 500 kHz
- Operating Temperature
- -20°C ~ 75°C
Pricing tiers
| Packaging | Qty | Unit price |
|---|---|---|
| Tray | 1 | ¥12.59000 |
| Tray | 10 | ¥10.36600 |
| Tray | 25 | ¥9.58760 |
| Tray | 40 | ¥9.21100 |
| Tray | 100 | ¥8.52130 |
| Tray | 300 | ¥7.76257 |
| Tray | 500 | ¥7.43360 |
| Tray | 1,000 | ¥7.00998 |
| Tray | 2,400 | ¥6.50997 |
