STA12-14WH-ET

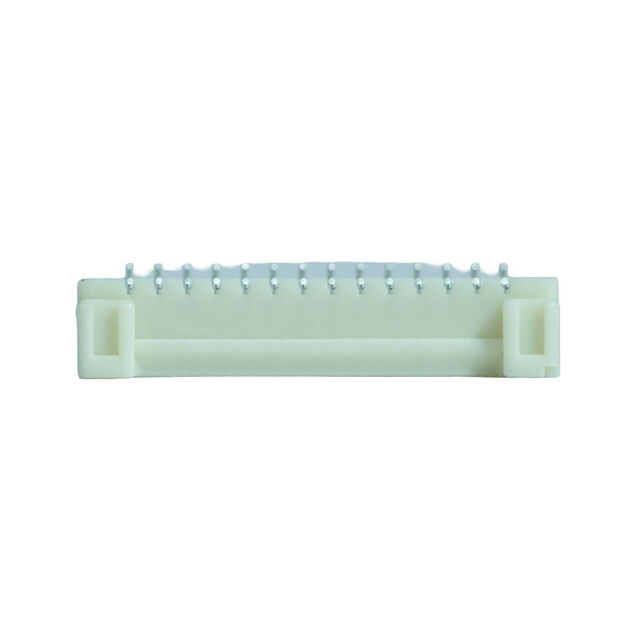

1.25 MM W TO B CONNECTOR 14P HEA
Manufacturer: JAMIC code: 4285-STA12-14WH-ETTR-ND - Tape & Reel (TR) || 4285-STA12-14WH-ETCT-ND - Cut Tape (CT) || 4285-STA12-14WH-ETDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 14 position 0.049" (1.25mm)
Specifications
- Mfr
- JAM
- Style
- Board to Cable/Wire
- Series
- STA
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.049" (1.25mm) Contact MaterialPhosphor Bronze Insulation Height0.169" (4.30mm) Insulation MaterialPolyamide (PA6T), Nylon 6T, Glass Filled Current Rating (Amps)1.5A Operating Temperature-40°C ~ 85°C Contact Finish - MatingTin Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥3.89000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.30800 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.10280 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥2.95400 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.81260 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.63616 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.51010 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥2.39028 |
| Tape & Reel (TR) | 2,200 | ¥2.26083 |
| Tape & Reel (TR) | 4,400 | ¥2.15290 |
| Tape & Reel (TR) | 6,600 | ¥2.09218 |
| Tape & Reel (TR) | 11,000 | ¥2.01816 |
| Tape & Reel (TR) | 15,400 | ¥1.97084 |
| Tape & Reel (TR) | 22,000 | ¥1.92188 |
