STGD20N45LZAG

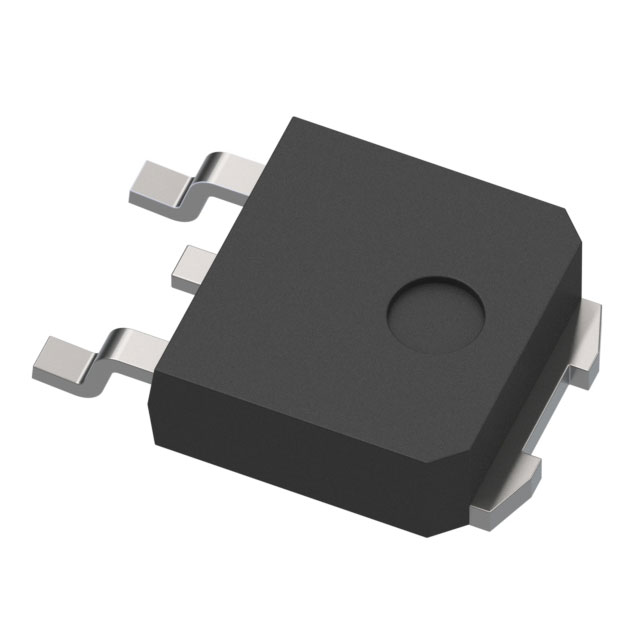

IGBT 450V 25A TO-252
Manufacturer: STMicroelectronicsIC code: 497-17644-2-ND - Tape & Reel (TR) || 497-17644-1-ND - Cut Tape (CT) || 497-17644-6-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
IGBT 450 V 25 A 125 W Surface Mount TO-252 (DPAK)
Specifications
- Grade
- Automotive
- Series
- -
- IGBT Type
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Input Type
- Logic
- Gate Charge
- 26 nC
- Part Status
- Active
- Power - Max
- 125 W
- Manufacturer
- STMicroelectronics
- Mounting Type
- Surface Mount
- Qualification
- AEC-Q101
- Package / Case
- TO-252-3, DPAK (2 Leads + Tab), SC-63
- Test Condition
- 300V, 10A, 1kOhm, 5V
