Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

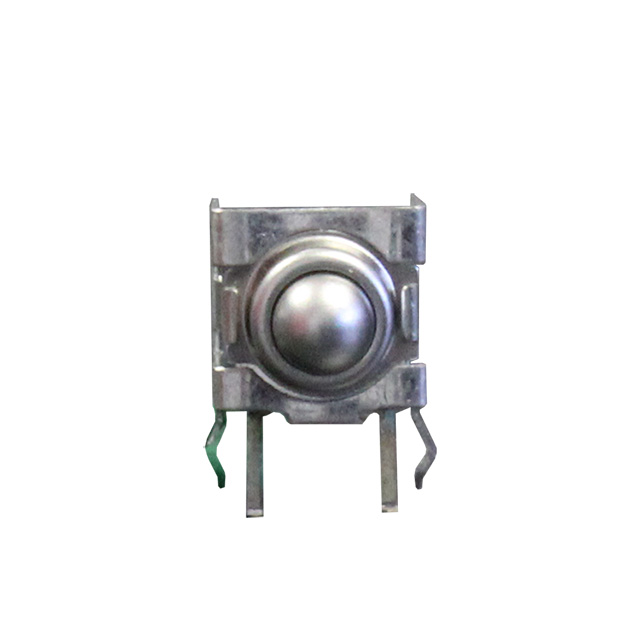

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Specifications
- Mfr
- CIT Relay and Switch
- Series
- STJV
- Circuit
- SPST-NO
- Outline
- 8.00mm x 6.00mm
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Spherical
- Mounting Type
- Through Hole, Right Angle
- Switch Travel
- 1.60mm
- Mechanical Life
- -
- Operating Force
- 300gf
Actuator MaterialStainless Steel Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberSTJVF300 Actuator OrientationSide Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 48VDC Illumination Type, Color- Actuator Length, Right Angle5.30mm Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical- Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tube | 1 | ¥9.84000 |
| Tube | 10 | ¥8.59300 |
| Tube | 60 | ¥7.70900 |
| Tube | 120 | ¥7.38717 |
| Tube | 300 | ¥6.97823 |
| Tube | 540 | ¥6.72626 |
| Tube | 1,020 | ¥6.46275 |
| Tube | 2,520 | ¥6.10378 |
| Tube | 5,040 | ¥5.84108 |
