STL80N75F6

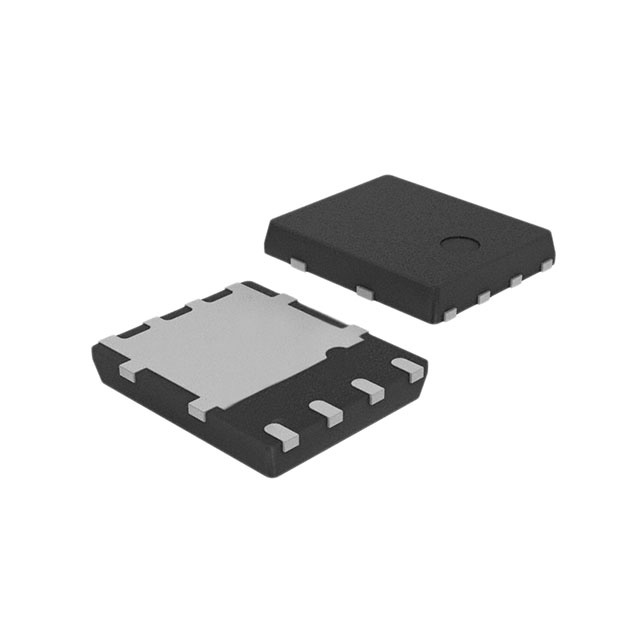

MOSFET N-CH 75V 80A POWERFLAT
Manufacturer: STMicroelectronicsIC code: 497-12981-2-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
N-Channel 75 V 80A (Tc) 80W (Tc) Surface Mount PowerFlat™ (5x6)
Specifications
- Mfr
- STMicroelectronics
- Grade
- -
- Series
- DeepGATE™, STripFET™ VI
- FET Type
- N-Channel
- Packaging
- Tape & Reel (TR)
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Obsolete
- Mounting Type
- Surface Mount
- Qualification
- -
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 4V @ 250µA
- Base Product Number
- STL80
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs
- 6.3mOhm @ 9A, 10V
- Power Dissipation (Max)
- 80W (Tc)
- Supplier Device Package
- PowerFlat™ (5x6)
