STMM-110-02-G-D-SM-K-TR

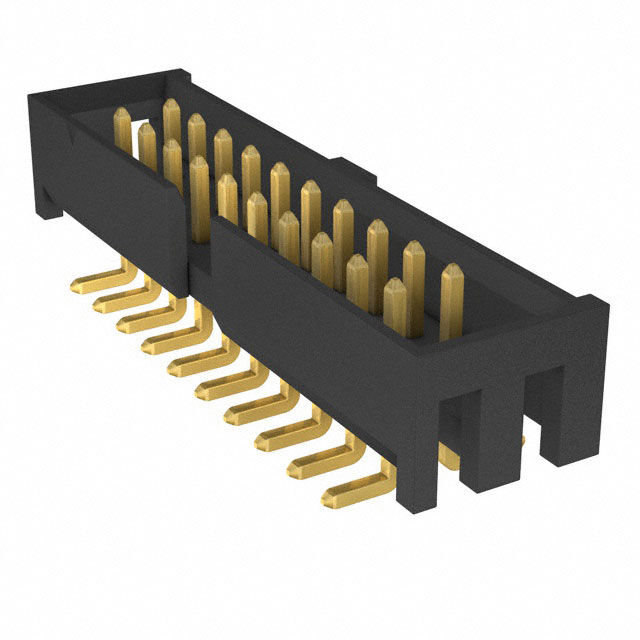

CONN HEADER SMD 20POS 2MM
Manufacturer: Samtec Inc.IC code: 612-STMM-110-02-G-D-SM-K-TR-ND - Tape & Reel (TR) || 612-STMM-110-02-G-D-SM-K-TRCT-ND - Cut Tape (CT) || 612-STMM-110-02-G-D-SM-K-TRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 20 position 0.079" (2.00mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Cable/Wire
- Series
- Flex Stack, STMM
- Features
- Keying Slot, Pick and Place
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
Pitch - Mating0.079" (2.00mm) Contact MaterialPhosphor Bronze Insulation Height0.190" (4.83mm) Base Product NumberSTMM-110 Insulation MaterialLiquid Crystal Polymer (LCP) Row Spacing - Mating0.079" (2.00mm) Contact Finish - PostGold Operating Temperature-55°C ~ 125°C Contact Finish - MatingGold Contact Length - Mating0.120" (3.05mm) Number of Positions LoadedAll Material Flammability Rating- Contact Finish Thickness - Post3.00µin (0.076µm) Contact Finish Thickness - Mating20.0µin (0.51µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥51.11000 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥46.81480 |
| Tape & Reel (TR) | 400 | ¥40.93665 |
| Tape & Reel (TR) | 800 | ¥30.76458 |
| Tape & Reel (TR) | 1,200 | ¥28.06104 |
