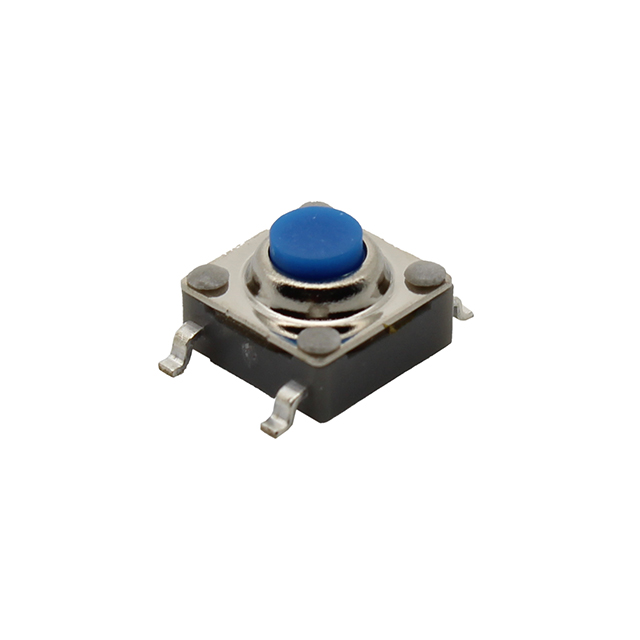

STR4.3LF160QG
SWITCH TACTILE SPST-NO 0.05A 48V
Manufacturer: CIT Relay and SwitchIC code: 2449-STR4.3LF160QGTR-ND - Tape & Reel (TR) || 2449-STR4.3LF160QGCT-ND - Cut Tape (CT) || 2449-STR4.3LF160QGDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- CIT Relay and Switch
- Series
- STR
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.20mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.28mm
- Mechanical Life
- -
- Operating Force
- 160gf
Actuator MaterialPolyamide (PA6T), Nylon 6T Termination StyleGull Wing Ingress ProtectionIP67 - Dust Tight, Waterproof Base Product NumberSTR4.3 Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 48VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical4.30mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥4.13000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥3.57300 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥3.33440 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥2.97970 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥2.76020 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥2.60554 |
| Tape & Reel (TR) | 1,000 | ¥2.59347 |
| Tape & Reel (TR) | 2,000 | ¥2.48282 |
| Tape & Reel (TR) | 3,000 | ¥2.42002 |
| Tape & Reel (TR) | 5,000 | ¥2.34295 |
| Tape & Reel (TR) | 7,000 | ¥2.29345 |
| Tape & Reel (TR) | 10,000 | ¥2.24201 |
| Tape & Reel (TR) | 25,000 | ¥2.11482 |
