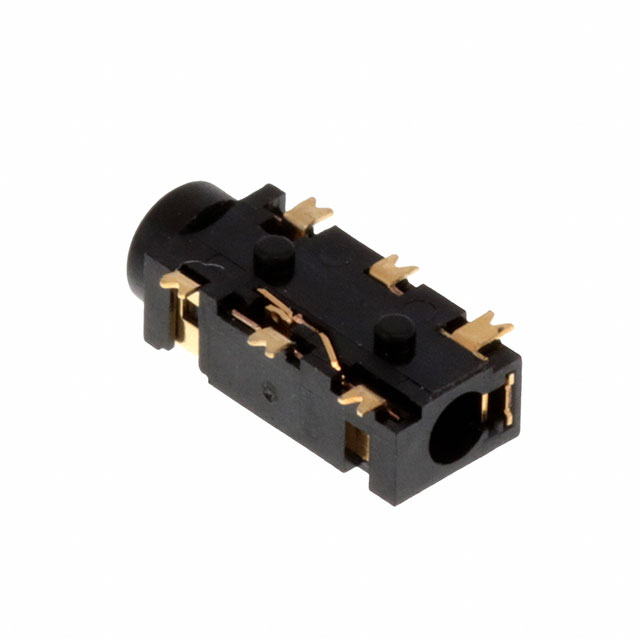

STX-25427-6N-TR
CONN JACK STEREO 2.5MM R/A SMT
Manufacturer: Kycon, Inc.IC code: 2092-STX-25427-6N-TR-ND - Tape & Reel (TR) || 2092-STX-25427-6N-CT-ND - Cut Tape (CT) || 2092-STX-25427-6N-DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-25427
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (4 Conductor, TRRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.102" (2.60mm) Contact MaterialCopper Alloy Internal Switch(s)Two Switches Operating Temperature-25°C ~ 70°C Contact Material - PlatingGold Number of Positions/Contacts4 Conductors, 6 Contacts Industry Recognized Mating Diameter2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥15.38000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥13.05000 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥12.23280 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥11.64920 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥11.09250 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥10.39736 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥9.90084 |
| Tape & Reel (TR) | 1,250 | ¥9.28105 |
| Tape & Reel (TR) | 2,500 | ¥8.83830 |
| Tape & Reel (TR) | 3,750 | ¥8.58923 |
| Tape & Reel (TR) | 6,250 | ¥8.28546 |
| Tape & Reel (TR) | 8,750 | ¥8.09134 |
