Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

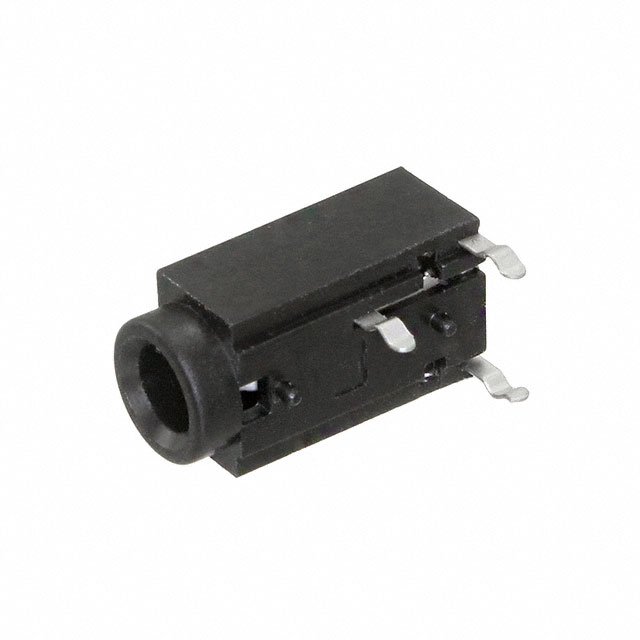

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3000
- Features
- Board Guide
- Includes
- -
- Packaging
- Bulk
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Kinked Pin
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeThrough Hole, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Housing MaterialPolybutylene Terephthalate (PBT) Internal Switch(s)Does Not Contain Switch Operating Temperature-25°C ~ 80°C Contact Material - PlatingTin Number of Positions/Contacts3 Conductors, 3 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥5.13000 |
| Bulk | 10 | ¥4.32500 |
| Bulk | 25 | ¥4.04880 |
| Bulk | 50 | ¥3.85540 |
| Bulk | 100 | ¥3.67190 |
| Bulk | 250 | ¥3.44164 |
| Bulk | 500 | ¥3.27706 |
| Bulk | 1,000 | ¥3.12043 |
| Bulk | 3,000 | ¥2.88766 |
