Description

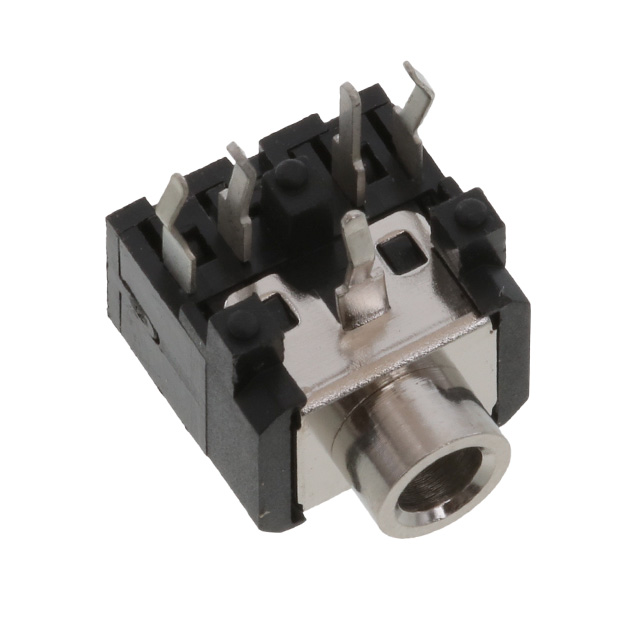

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3200
- Features
- Board Guide
- Includes
- -
- Packaging
- Bulk
- Shielding
- Unshielded
- Body Color
- Silver, Black
- Part Status
- Active
- Termination
- Kinked Pin
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeThrough Hole, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy, Phosphor Bronze Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled Internal Switch(s)Two Switches Operating Temperature-25°C ~ 100°C Contact Material - PlatingNickel, Tin Number of Positions/Contacts3 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Bulk | 1 | ¥10.83000 |
| Bulk | 10 | ¥9.18000 |
| Bulk | 25 | ¥8.60080 |
| Bulk | 50 | ¥8.18900 |
| Bulk | 100 | ¥7.79780 |
| Bulk | 250 | ¥7.30900 |
| Bulk | 500 | ¥6.95986 |
| Bulk | 1,000 | ¥6.62757 |
| Bulk | 2,500 | ¥6.21272 |
