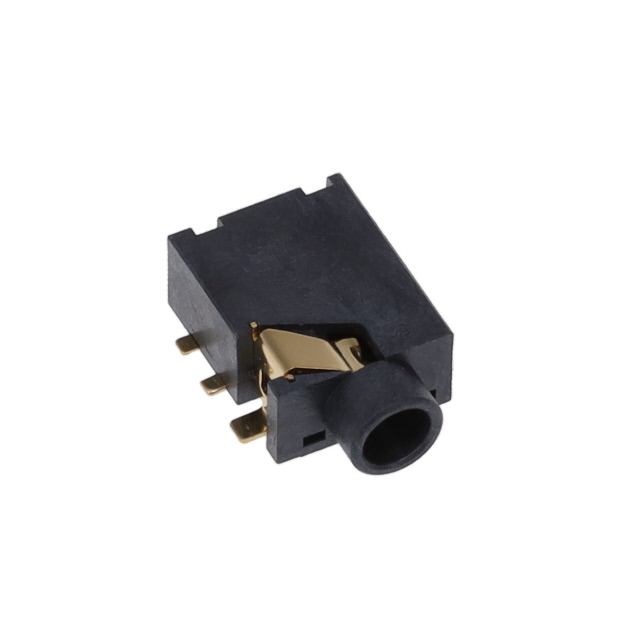

STX-35332-5N-TR
3.5MM AUDIO JACK, SMT, 3 POLE, 5
Manufacturer: Kycon, Inc.IC code: 2092-STX-35332-5N-TR-ND - Tape & Reel (TR) || 2092-STX-35332-5N-CT-ND - Cut Tape (CT) || 2092-STX-35332-5N-DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder, Solder Eyelet
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3533
- Features
- Board Guide
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder, Solder Eyelet
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeSurface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Internal Switch(s)Does Not Contain Switch Current Rating (Amps)300 mA Operating Temperature-25°C ~ 70°C Contact Material - PlatingGold Number of Positions/Contacts3 Conductors, 3 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥10.17000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥8.65900 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥8.11800 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥7.72920 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥7.35950 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥6.89848 |
| Tape & Reel (TR) | 800 | ¥6.35456 |
| Tape & Reel (TR) | 1,600 | ¥6.05126 |
| Tape & Reel (TR) | 2,400 | ¥5.88065 |
| Tape & Reel (TR) | 4,000 | ¥5.67259 |
| Tape & Reel (TR) | 5,600 | ¥5.53961 |
| Tape & Reel (TR) | 8,000 | ¥5.40204 |
