STX-35398A-5N-TR

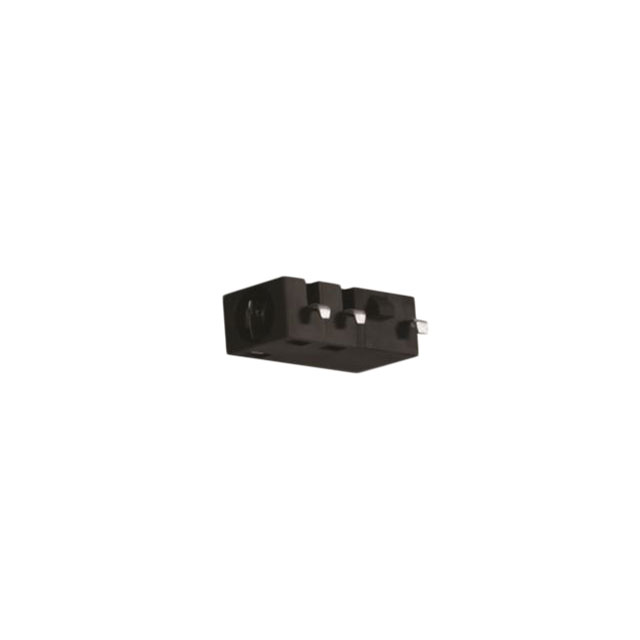

MID MOUNT, 3.5MM STEREO JACK W/T
Manufacturer: Kycon, Inc.IC code: 2092-STX-35398A-5N-TR-ND - Tape & Reel (TR) || 2092-STX-35398A-5N-TRCT-ND - Cut Tape (CT) || 2092-STX-35398A-5N-TRDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3539
- Features
- Board Lock
- Includes
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeBoard Cutout, Surface Mount, Right Angle Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Internal Switch(s)Single Switch Mating Length/Depth0.551" (14.00mm) Operating Temperature-25°C ~ 85°C Contact Material - PlatingGold Number of Positions/Contacts3 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥11.74000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥9.98200 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥9.35840 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥8.91180 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥8.48500 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥7.95340 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥7.57350 |
| Tape & Reel (TR) | 1,000 | ¥7.21201 |
| Tape & Reel (TR) | 2,000 | ¥6.86782 |
| Tape & Reel (TR) | 3,000 | ¥6.67427 |
| Tape & Reel (TR) | 5,000 | ¥6.43817 |
| Tape & Reel (TR) | 7,000 | ¥6.28726 |
| Tape & Reel (TR) | 10,000 | ¥6.13116 |
