Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

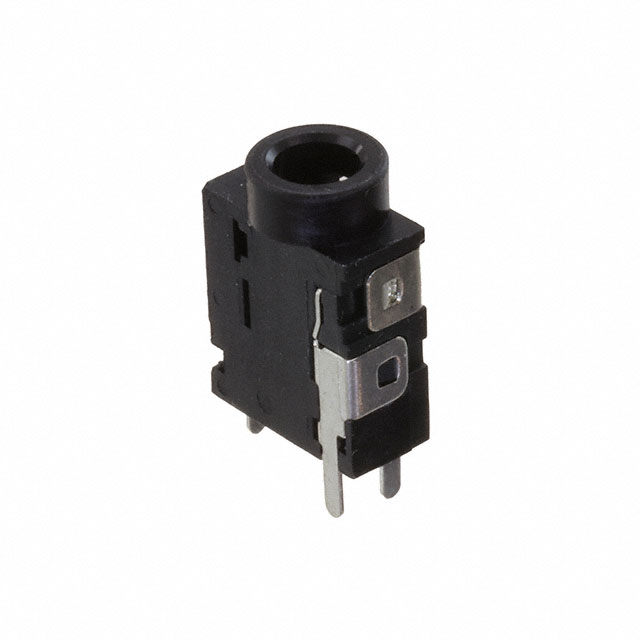

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-3790
- Features
- -
- Includes
- -
- Packaging
- Tray
- Shielding
- Unshielded
- Body Color
- Black
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
- Cable Opening
Mounting TypeThrough Hole Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy Housing MaterialThermoplastic Internal Switch(s)Two Switches Current Rating (Amps)300 mA Operating Temperature-25°C ~ 85°C Contact Material - PlatingTin Number of Positions/Contacts3 Conductors, 5 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥14.31000 |
| Tray | 10 | ¥12.17300 |
| Tray | 25 | ¥11.41240 |
| Tray | 50 | ¥10.86680 |
| Tray | 150 | ¥10.05573 |
| Tray | 300 | ¥9.57553 |
| Tray | 600 | ¥9.11822 |
| Tray | 1,050 | ¥8.76525 |
| Tray | 2,550 | ¥8.23354 |
