Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description

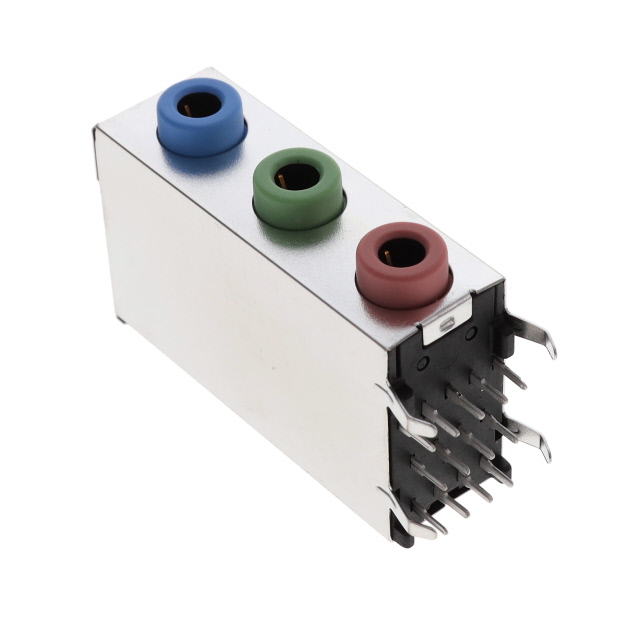

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack, Triple Stereo (3 Conductor, TRS) Connector Solder
Specifications
- Mfr
- Kycon, Inc.
- Gender
- Female
- Series
- STX-4335
- Features
- Board Lock
- Includes
- -
- Packaging
- Tray
- Shielding
- Shielded
- Body Color
- Silver
- Part Status
- Active
- Termination
- Solder
- Thread Size
- -
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- -
Mounting TypeThrough Hole, Right Angle Connector TypePhone Jack, Triple Actual Diameter0.142" (3.60mm) Contact MaterialCopper Alloy, Steel Housing MaterialPolybutylene Terephthalate (PBT), Glass Filled Insulation ColorBlue, Lime, Pink Internal Switch(s)Six Switches Operating Temperature-25°C ~ 100°C Contact Material - PlatingGold, Tin Number of Positions/Contacts3 Sets of 3 Conductors, 15 Contacts Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Tray | 1 | ¥23.32000 |
| Tray | 10 | ¥19.84000 |
| Tray | 25 | ¥18.59440 |
| Tray | 50 | ¥17.70600 |
| Tray | 100 | ¥16.86000 |
| Tray | 250 | ¥15.80428 |
| Tray | 500 | ¥15.05006 |
| Tray | 1,000 | ¥14.52417 |
