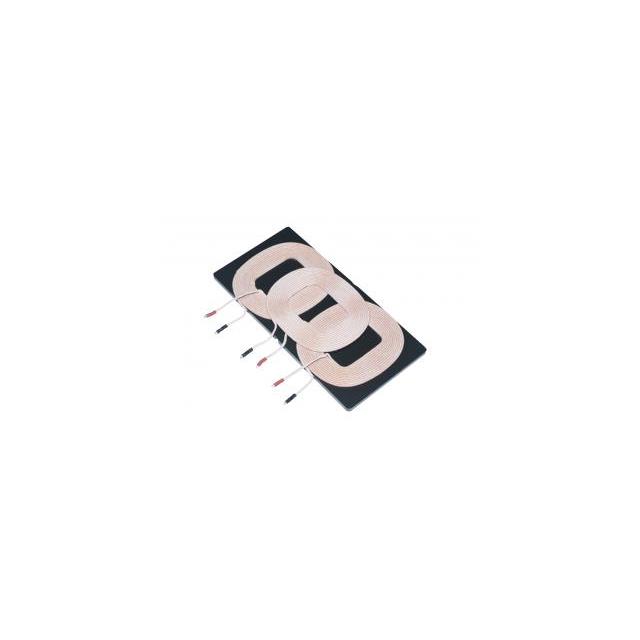

STX106530612R5KT
3 COIL 1 LAYER 12.5UH, 11.5UH, 1
Manufacturer: Superworld Electronics (S) Pte. Ltd.IC code: 5025-STX106530612R5KT-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
3 Coil, 1 Layer 12.5µH, 11.5µH, 12.5µH Wireless Charging Coil Transmitter 80mOhm Max
Specifications
- Type
- 3 Coil, 1 Layer
- Series
- STX
- Function
- Transmitter
- Q @ Freq
- -
- Packaging
- Bulk
- Tolerance
- ±10%
- Inductance
- 12.5µH, 11.5µH, 12.5µH
- Part Status
- Active
- Manufacturer
- Superworld Electronics (S) Pte. Ltd.
- Size / Dimension
- 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm)
- DC Resistance (DCR)
- 80mOhm Max
- Current Rating (Amps)
- 6.5A
- Operating Temperature
