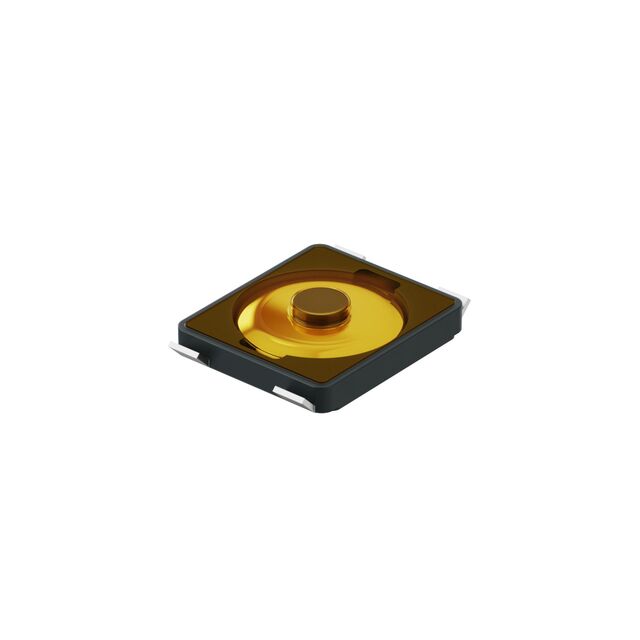

SWT5005-006510JSA
TACTILE SWITCH, SPST-NO, 3.0 X 2
Manufacturer: GCTIC code: 2073-SWT5005-006510JSATR-ND - Tape & Reel (TR) || 2073-SWT5005-006510JSACT-ND - Cut Tape (CT) || 2073-SWT5005-006510JSADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- GCT
- Series
- SWT5005
- Circuit
- SPST-NO
- Outline
- 3.00mm x 2.60mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.20mm
- Mechanical Life
- 50,000 Cycles
- Operating Force
- 100gf
Actuator MaterialLiquid Crystal Polymer (LCP) Ingress ProtectionIP65 - Dust Tight, Water Resistant Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical0.65mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.40000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.11700 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥1.97800 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥1.87380 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.77290 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.64328 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.55050 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.46392 |
| Tape & Reel (TR) | 5,000 | ¥1.28871 |
| Tape & Reel (TR) | 10,000 | ¥1.22505 |
| Tape & Reel (TR) | 15,000 | ¥1.19106 |
| Tape & Reel (TR) | 25,000 | ¥1.15155 |
| Tape & Reel (TR) | 35,000 | ¥1.12747 |
| Tape & Reel (TR) | 50,000 | ¥1.10358 |
