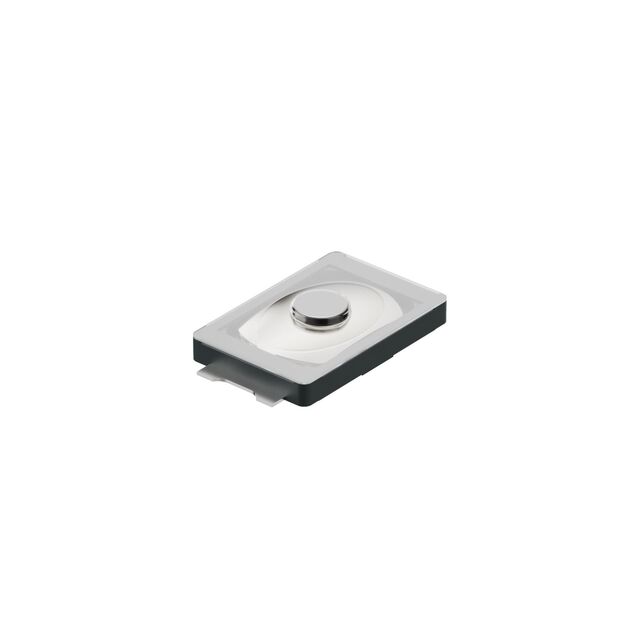

SWT7016-006016SSA
TACTILE SWITCH, SPST-NO, 3.0 X 2
Manufacturer: GCTIC code: 2073-SWT7016-006016SSATR-ND - Tape & Reel (TR) || 2073-SWT7016-006016SSACT-ND - Cut Tape (CT) || 2073-SWT7016-006016SSADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- GCT
- Series
- SWT7016
- Circuit
- SPST-NO
- Outline
- 3.00mm x 2.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.15mm
- Mechanical Life
- 300,000 Cycles
- Operating Force
- 160gf
Actuator MaterialPolyphthalamide (PPA) Termination StyleSMD (SMT) Tab Ingress ProtectionIP67 - Dust Tight, Waterproof Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical0.60mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥1.90000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥1.67900 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥1.57440 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥1.49500 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.41410 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.31120 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.23742 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.16804 |
| Cut Tape (CT) & Digi-Reel® | 5,000 | ¥1.02675 |
| Tape & Reel (TR) | 10,000 | ¥0.97510 |
| Tape & Reel (TR) | 20,000 | ¥0.92897 |
| Tape & Reel (TR) | 30,000 | ¥0.90446 |
| Tape & Reel (TR) | 50,000 | ¥0.87608 |
| Tape & Reel (TR) | 70,000 | ¥0.85884 |
