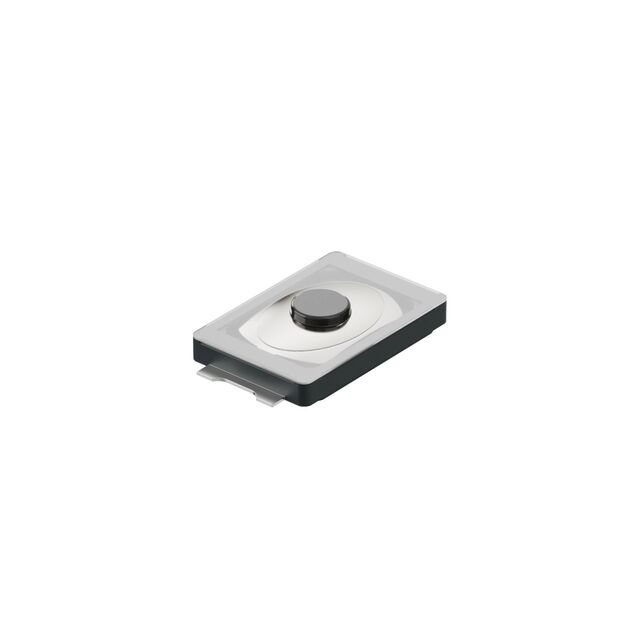

SWT7017-006030SSA
TACTILE SWITCH, SPST-NO, 3.0 X 2
Manufacturer: GCTIC code: 2073-SWT7017-006030SSATR-ND - Tape & Reel (TR) || 2073-SWT7017-006030SSACT-ND - Cut Tape (CT) || 2073-SWT7017-006030SSADKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Tactile Switch SPST-NO Top Actuated Surface Mount
Specifications
- Mfr
- GCT
- Series
- SWT7017
- Circuit
- SPST-NO
- Outline
- 3.00mm x 2.00mm
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Illumination
- Non-Illuminated
- Actuator Type
- Standard
- Mounting Type
- Surface Mount
- Switch Travel
- 0.13mm
- Mechanical Life
- 300,000 Cycles
- Operating Force
- 300gf
Actuator MaterialPolyphthalamide (PPA) Termination StyleSMD (SMT) Tab Ingress ProtectionIP67 - Dust Tight, Waterproof Actuator OrientationTop Actuated Operating Temperature-40°C ~ 85°C Contact Rating @ Voltage0.05A @ 12VDC Illumination Type, Color- Actuator Length, Right Angle- Illumination Voltage (Nominal)- Actuator Height off PCB, Vertical0.60mm Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥2.40000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥2.07600 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥1.94160 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥1.83900 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥1.73900 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥1.61184 |
| Cut Tape (CT) & Digi-Reel® | 500 | ¥1.52106 |
| Cut Tape (CT) & Digi-Reel® | 1,000 | ¥1.43597 |
| Cut Tape (CT) & Digi-Reel® | 5,000 | ¥1.26393 |
| Tape & Reel (TR) | 10,000 | ¥1.20140 |
| Tape & Reel (TR) | 20,000 | ¥1.14570 |
| Tape & Reel (TR) | 30,000 | ¥1.11617 |
| Tape & Reel (TR) | 50,000 | ¥1.08202 |
| Tape & Reel (TR) | 70,000 | ¥1.06130 |
