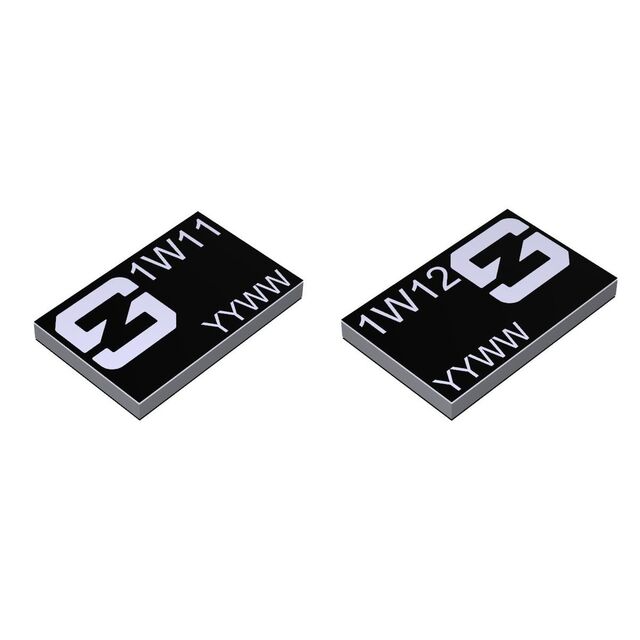

SZP-C-1W11
Tri-Band WLAN/BLE SMD Antenna Le
Manufacturer: SynzenIC code: 3260-SZP-C-1W11CT-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF ANTENNA Wi-Fi Chip Solder Surface Mount
Specifications
- Gain
- 0.8dBi, 2.48dBi, 2.82dBi
- VSWR
- -
- Series
- -
- Features
- -
- Packaging
- Tape & Reel (TR)
- Part Status
- Active
- Return Loss
- -
- Termination
- Solder
- Antenna Type
- Chip
- Applications
- Wi-Fi
- Height (Max)
- 0.043" (1.10mm)
- Manufacturer
- Synzen
- Mounting Type
- Surface Mount
- Frequency Group
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency Range
- 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
- Number of Bands
- 3
- Ingress Protection
- -
- RF Family/Standard
- WiFi
