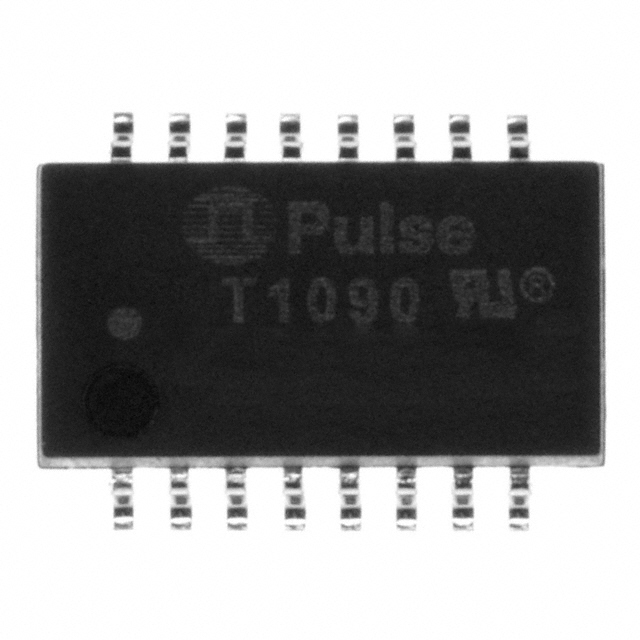

T1090T
PULSE XFMR 1CT:2CT TX 1CT:2CT RX
Manufacturer: Pulse ElectronicsIC code: T1090T-ND - Tape & Reel (TR)
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Pulse Transformer 1CT:2CT Transmitter, 1CT:2CT Receiver Surface Mount
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR)
- Inductance
- -
- Part Status
- Obsolete
- Manufacturer
- Pulse Electronics
- Mounting Type
- Surface Mount
- ET (Volt-Time)
- -
- Size / Dimension
- 0.505" L x 0.280" W (12.83mm x 7.11mm)
- Transformer Type
- -
- Height - Seated (Max)
- 0.245" (6.22mm)
- Operating Temperature
- -40°C ~ 85°C
- Turns Ratio - Primary:Secondary
- 1CT:2CT Transmitter, 1CT:2CT Receiver
