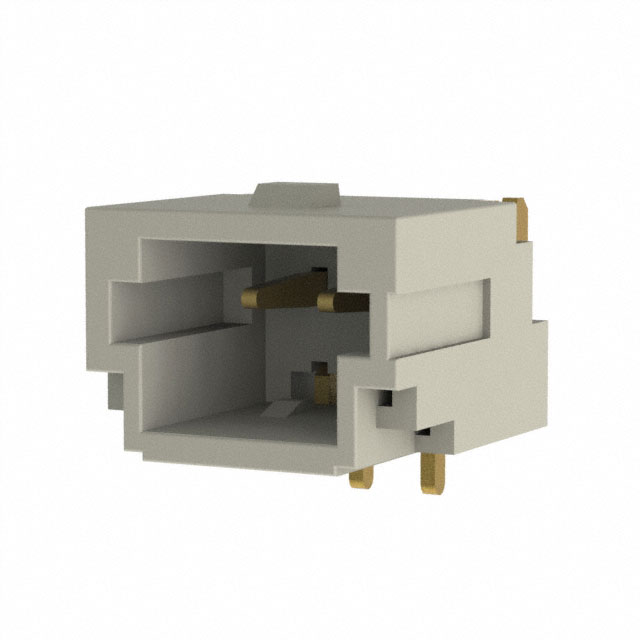

T1M-02-GF-S-V-TR
CONN HEADER SMD 2POS 1MM
Manufacturer: Samtec Inc.IC code: SAM14650TR-ND - Tape & Reel (TR) || SAM14650CT-ND - Cut Tape (CT) || SAM14650DKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 2 position 0.039" (1.00mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Cable/Wire
- Series
- Micro Mate™ T1M
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.039" (1.00mm) Voltage Rating250VAC, 353VDC Contact MaterialPhosphor Bronze Insulation Height0.167" (4.25mm) Base Product NumberT1M-02 Insulation MaterialLiquid Crystal Polymer (LCP) Contact Finish - PostGold Current Rating (Amps)3.3A per Contact Operating Temperature-55°C ~ 85°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post3.00µin (0.076µm) Contact Finish Thickness - Mating3.00µin (0.076µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥25.80000 |
| Cut Tape (CT) & Digi-Reel® | 10 | ¥21.89100 |
| Cut Tape (CT) & Digi-Reel® | 25 | ¥20.51960 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥19.53860 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥18.60580 |
| Cut Tape (CT) & Digi-Reel® | 250 | ¥17.44040 |
| Tape & Reel (TR) | 975 | ¥14.06484 |
| Tape & Reel (TR) | 1,950 | ¥13.39399 |
| Tape & Reel (TR) | 2,925 | ¥13.01654 |
| Tape & Reel (TR) | 4,875 | ¥12.55632 |
