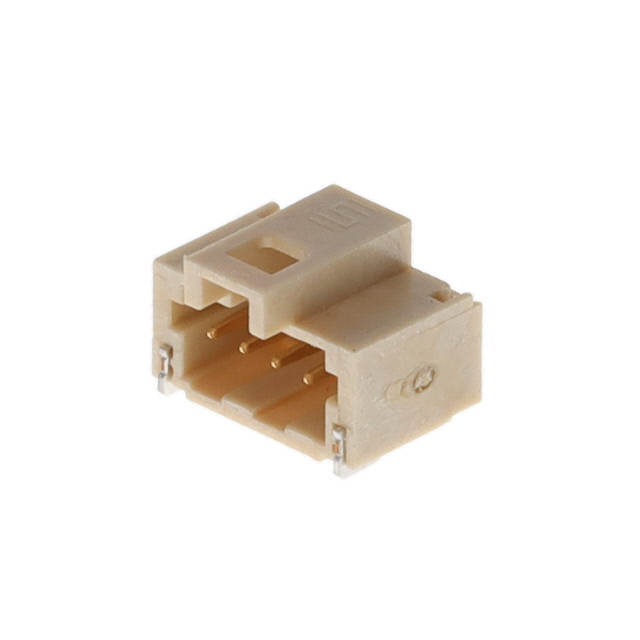

T1M-04-F-SH-L
CONN HEADER SMD R/A 4POS 1MM
Manufacturer: Samtec Inc.IC code: 612-T1M-04-F-SH-LTR-ND - Tape & Reel (TR) || 612-T1M-04-F-SH-LCT-ND - Cut Tape (CT) || 612-T1M-04-F-SH-LDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount, Right Angle 4 position 0.039" (1.00mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Cable/Wire
- Series
- Micro Mate™ T1M
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount, Right Angle
- Connector Type
- Header
Fastening TypeLocking Ramp Pitch - Mating0.039" (1.00mm) Voltage Rating250VAC, 353VDC Contact MaterialPhosphor Bronze Insulation Height0.181" (4.60mm) Base Product NumberT1M-04 Insulation MaterialLiquid Crystal Polymer (LCP) Current Rating (Amps)2.2A per Contact Operating Temperature-55°C ~ 85°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating3.00µin (0.076µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥25.64000 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥20.84040 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥17.69780 |
| Tape & Reel (TR) | 950 | ¥15.79568 |
| Tape & Reel (TR) | 1,900 | ¥12.73583 |
| Tape & Reel (TR) | 2,850 | ¥11.66074 |
| Tape & Reel (TR) | 6,650 | ¥9.67591 |
