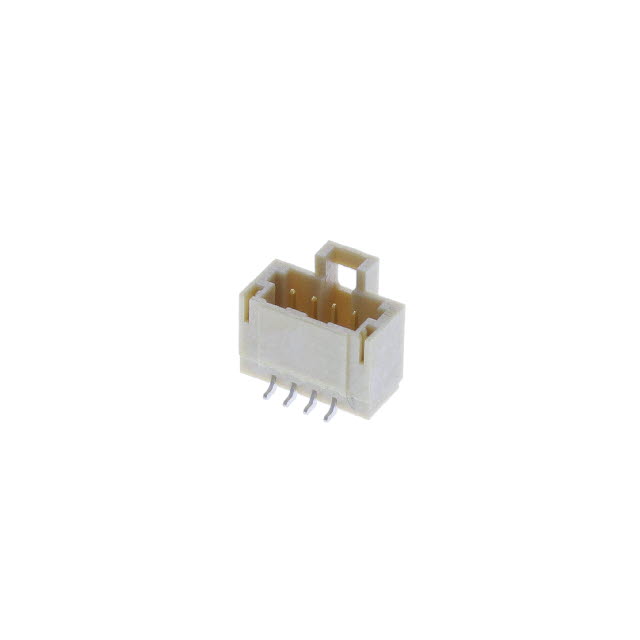

T1M-04-F-SV-L
CONN HEADER SMD 4POS 1MM
Manufacturer: Samtec Inc.IC code: 612-T1M-04-F-SV-LTR-ND - Tape & Reel (TR) || 612-T1M-04-F-SV-LCT-ND - Cut Tape (CT) || 612-T1M-04-F-SV-LDKR-ND - Digi-Reel® Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
Connector Header Surface Mount 4 position 0.039" (1.00mm)
Specifications
- Mfr
- Samtec Inc.
- Style
- Board to Cable/Wire
- Series
- Micro Mate™ T1M
- Features
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Shrouding
- Shrouded - 4 Wall
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Male Pin
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Header
Pitch - Mating0.039" (1.00mm) Voltage Rating250VAC, 353VDC Contact MaterialPhosphor Bronze Insulation Height0.217" (5.51mm) Base Product NumberT1M-04 Insulation MaterialLiquid Crystal Polymer (LCP) Current Rating (Amps)3.3A per Contact Operating Temperature-55°C ~ 85°C Contact Finish - MatingGold Number of Positions LoadedAll Material Flammability RatingUL94 V-0 Contact Finish Thickness - Post- Contact Finish Thickness - Mating3.00µin (0.076µm) Pricing tiers
| Packaging | Qty | Unit price |
|---|
| Cut Tape (CT) & Digi-Reel® | 1 | ¥24.40000 |
| Cut Tape (CT) & Digi-Reel® | 50 | ¥19.84800 |
| Cut Tape (CT) & Digi-Reel® | 100 | ¥16.87080 |
| Tape & Reel (TR) | 825 | ¥14.96868 |
| Tape & Reel (TR) | 1,650 | ¥12.07424 |
| Tape & Reel (TR) | 2,475 | ¥11.08182 |
| Tape & Reel (TR) | 5,775 | ¥9.17970 |
