TB0559A

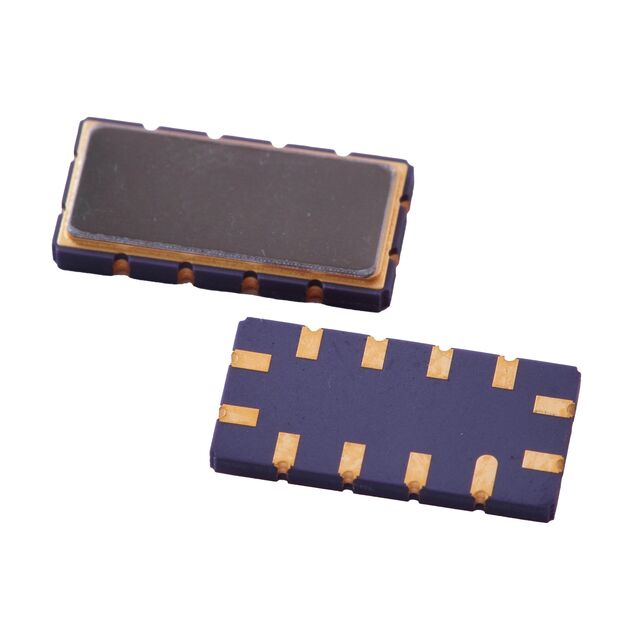

FILTER SAW 140MHZ 12-SMD
Manufacturer: TSTIC code: 4606-TB0559ATR-ND - Tape & Reel (TR) || 4606-TB0559ACT-ND - Cut Tape (CT) || 4606-TB0559ADKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
140MHz Frequency IF RF SAW Filter (Surface Acoustic Wave) 9.2dB 18.2MHz Bandwidth 12-SMD, No Lead
Specifications
- Series
- -
- Ratings
- -
- Bandwidth
- 18.2MHz
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Applications
- IF
- Height (Max)
- 0.071" (1.80mm)
- Manufacturer
- TST
- Mounting Type
- Surface Mount
- Insertion Loss
- 9.2dB
- Package / Case
- 12-SMD, No Lead
- Size / Dimension
- 0.524" L x 0.256" W (13.30mm x 6.50mm)
- Frequency - Center
