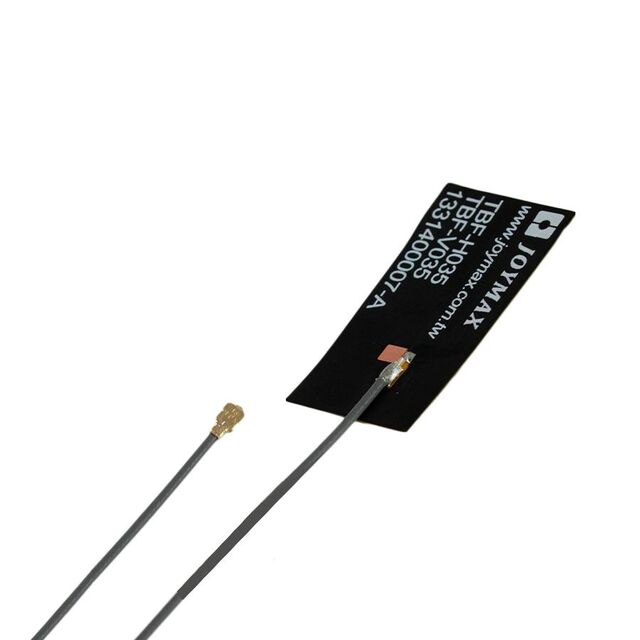

TBF-V035MP3B-W012
ANT WIFI 7 FPC 120MM CABLE MHF1
Manufacturer: Joymax ElectronicsIC code: 5448-TBF-V035MP3B-W012-ND
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF ANTENNA 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E Flat Patch MHF1, U.FL Adhesive
Specifications
- Gain
- 2.3dBi, 4.6dBi, 7.3dBi
- VSWR
- 1.8, 1.7, 2.5
- Grade
- -
- Series
- V035
- Features
- Cable - 120mm
- Packaging
- Bulk
- Part Status
- Active
- Power - Max
- 1 W
- Return Loss
- -10.9dB, -11.7dB, -7.4dB
- Termination
- MHF1, U.FL
- Antenna Type
- Flat Patch
- Applications
- 802.11ax, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
- Height (Max)
- 0.004" (0.10mm)
