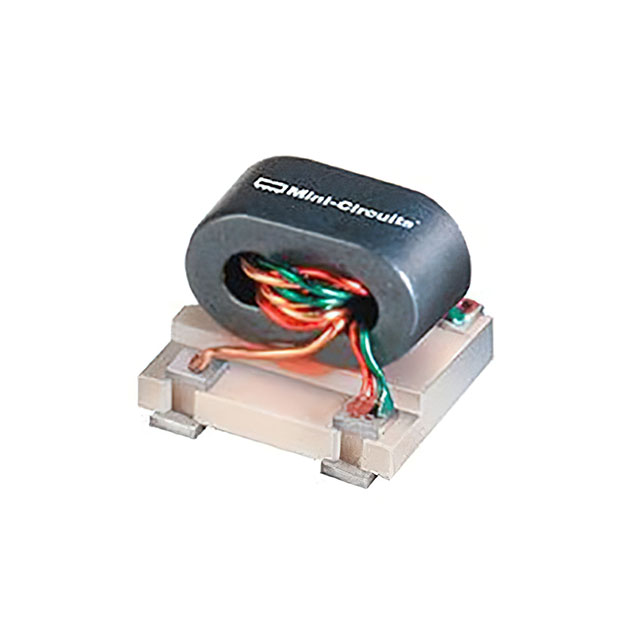

TC3-1T+
1:3 CORE & WIRE TRANSFORMER, 5 -
Manufacturer: Mini-CircuitsIC code: 3157-TC3-1T+TR-ND - Tape & Reel (TR) || 3157-TC3-1T+CT-ND - Cut Tape (CT) || 3157-TC3-1T+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 5MHz ~ 300MHz 1:3 5-SMD Module
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Package / Case
- 5-SMD Module
- Frequency Range
- 5MHz ~ 300MHz
- Phase Difference
- 5°
- Return Loss (Min)
- 21.45dB
- Insertion Loss (Max)
- 1.0dB
- Impedance - Unbalanced/Balanced
- 1:3
