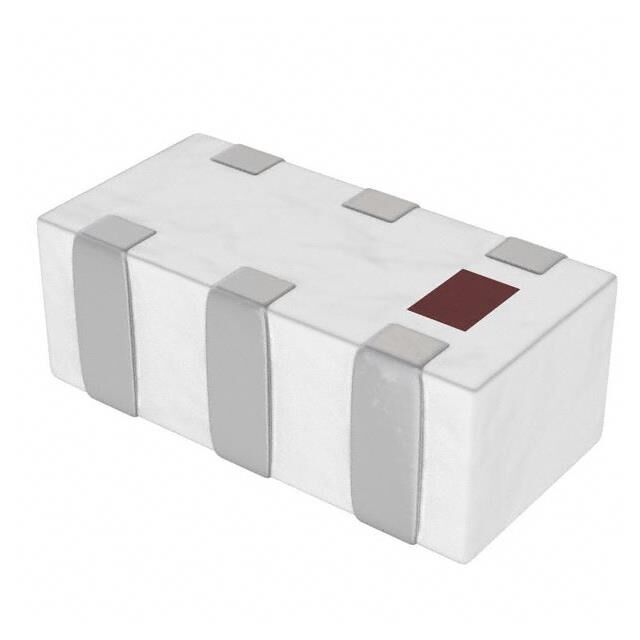

TCW4-582+
RF XFMR / SURF MT / ROHS
Manufacturer: Mini-CircuitsIC code: 3157-TCW4-582+TR-ND - Tape & Reel (TR) || 3157-TCW4-582+CT-ND - Cut Tape (CT) || 3157-TCW4-582+DKR-ND - Digi-Reel®
Request this MPN now. Sourcing more than one part? Upload your BOM and we can consolidate component sourcing into one quotation.
Description
RF Balun 5GHz ~ 5.8GHz 1:4 0603 (1608 Metric), 6 PC Pad
Specifications
- Series
- -
- Packaging
- Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
- Part Status
- Active
- Manufacturer
- Mini-Circuits
- Mounting Type
- Surface Mount
- Package / Case
- 0603 (1608 Metric), 6 PC Pad
- Frequency Range
- 5GHz ~ 5.8GHz
- Phase Difference
- 13°
- Return Loss (Min)
- 9.5dB
- Base Product Number
- TCW4
- Insertion Loss (Max)
- 1.7dB
- Impedance - Unbalanced/Balanced
- 1:4
